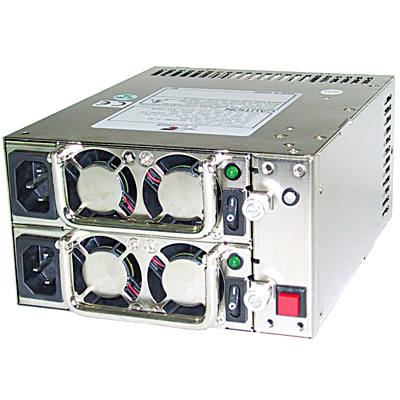

300W ATX Mini-Redundant Power Supply with PFC
Product ID: MRT-6300P
- Input Voltage: 90 to 264VAC, full range
- Input Frequency: 47 to 63 Hz
- Input Current: 6A / 3A at any low / high range input voltage
- Inrush Current: 60 / 80 A at 110 / 220 VAC
- Efficiency: 63% at 115V, full load
- Operation Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 20% to 80% RH; Non-condensing
- Over Voltage Protection
- +5V over 5.7V to 6.6V
- +3.3V over 3.9V to 4.3V
- +12V over 13.0V to 14.6V
- Hold-Up Time: 16ms
- Power Good Signal: 100ms to 500ms
- Dimensions: 86 x 150 x 185mm (3.39" x 5.19" x 7.28")
- CE
- FCC
| Output Voltage | Load Min | Load Max | Ripple & Noise | Load reg. | Line reg. |
|---|---|---|---|---|---|
| +5V | 3A | 25A | 50mV | 5% | 10% |
| -12V | 2A | 16A | 120mV | 7% | 10% |
| -5V | 0A | 0.5A | 150mV | 10% | 10% |
| -12V | 0A | 0.5A | 150mV | 10% | 10% |
| +3.3V | 1A | 18A | 50mV | 5% | 10% |
| +5Vsb | 0.1A | 2A | 60mV | 5% | 10% |
