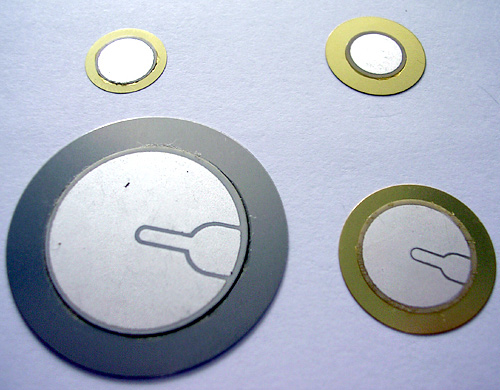

Piezo Ceramic Element
Product ID: AE Series
.Sample Purchase.
| External-Drive Type | |||||
|---|---|---|---|---|---|
| Model No | Resonant Frequency (KHz) | Resonant Impedance (ohm Max) | Capacity (pF) | Dimensions (mm) | Plate Material |
| AE-1212E-N | 12.0 ±1.0 | 1500 | 4500 ±30% | 12 x 0.33 | Brass |
| AE-1249E-N | 4.9 ±1.0 | 500 | 15000 ±30% | 12 x 0.12 | Brass |
| AE-1558E-N | 5.8 ±0.5 | 500 | 10000 ±30% | 15 x 0.23 | Brass |
| AE-1540E-N | 4.0 ±0.5 | 1500 | 10000 ±30% | 15 x 0.17 | Brass |
| AE-1591E-N | 9.1 ±1.0 | 500 | 7000 ±30% | 15 x 0.38 | Brass |
| AE-2038E-N | 3.8 ±0.5 | 200 | 25000 ±30% | 20 x 0.28 | Brass |
| AE-2041E-N | 4.1 ±0.5 | 300 | 17000 ±30% | 20 x 0.28 | Brass |
| AE-2064E-N | 6.4 ±0.5 | 200 | 12000 ±30% | 20 x 0.43 | Brass |
| AE-2710E-N | 10.5 ±1.0 | 500 | 12000 ±30% | 27 x 0.48 | Brass |
| AE-2720E-N | 2.0 ±0.3 | 300 | 45000 ±30% | 27 x 0.23 | Brass |
| AE-2728E-N | 2.8 ±0.5 | 300 | 30000 ±30% | 27 x 0.33 | Brass |
| AE-2744E-N | 4.4 ±0.5 | 200 | 18000 ±30% | 27 x 0.53 | Brass |
| AE-3113E-N | 1.3 ±0.3 | 80 | 43000 ±30% | 31 x 0.23 | 42 Alloy |
| AE-3518E-N | 1.8 ±0.5 | 250 | 50000 ±30% | 35 x 0.33 | Brass |
| AE-3526E-N | 2.6 ±0.5 | 200 | 30000 ±30% | 35 x 0.53 | Brass |
| AE-3529E-N | 2.9 ±0.5 | 200 | 30000 ±30% | 35 x 0.58 | Brass |
| AE-4107E-N | 0.7 ±0.3 | 1500 | 70000 ±30% | 41 x 0.23 | Brass |
| AE-4108E-N | 0.8 ±0.3 | 1000 | 70000 ±30% | 12 x 0.33 | 42 Alloy |
| AE-5028E-N | 2.8 ±0.5 | 200 | 35000 ±30% | 50 x 0.43 | Brass |
| Self-Drive Type | |||||
| Model No | Resonant Frequency (KHz) | Resonant Impedance (ohm Max) | Capacity (pF) | Dimensions (mm) | Plate Material |
| AE-1249S-N | 4.9 ±1.0 | 1000 | 12000 ±30% | 12 x 0.12 | Brass |
| AE-1558S-N | 5.8 ±0.5 | 1000 | 7500 ±30% | 15 x 0.23 | Brass |
| AE-2038S-N | 3.8 ±0.5 | 350 | 17000 ±30% | 20 x 0.28 | Brass |
| AE-2064S-N | 6.4 ±0.5 | 300 | 10000 ±30% | 20 x 0.43 | Brass |
| AE-2744S-N | 4.4 ±0.5 | 300 | 15000 ±30% | 27 x 0.53 | Brass |
| AE-3526S-N | 2.6 ±0.5 | 300 | 25000 ±30% | 35 x 0.53 | Brass |
| AE-3529S-N | 2.9 ±0.5 | 300 | 25000 ±30% | 35 x 0.53 | Brass |
