Electronic Ballast
Product ID: TC113, TC118, TC126-42, TC154-58, TC 226-42
Digitally Controlled "Universal Lamp" Ballast with Option of 1 or 2 Lamps and Automatic Identificationin Of Lamps and Wattages.
- Model: TC 113
- Lamp Type
- TC-DE: 1 x /2 x 10, 13W
- TC-TE: 1 x /2 x 13W
- Rated Voltage: 220 ~ 240V, 0/50 ~ 60Hz
- Operation Frequency: >40KHz
- Temperature Range: -25 ~ +60°C (Observe admissible minus temperatures of the lamps)
- Dimensions: 103 x 67 x 30.5mm
- Approbations: ENEC / K EMA / CE

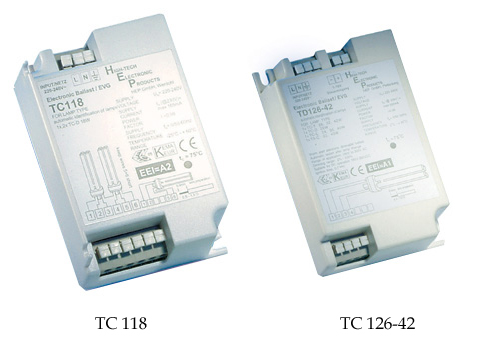

- Model: TC 118
- Lamp Type
- TC-DE: 1 x /2 x 18W
- TC-TE: 1 x /2 x 18W
- Rated Voltage: 220 ~ 240V, 0/50 ~ 60Hz
- Operation Frequency: >40KHz
- Temperature Range: -25 ~ +60°C (Observe admissible minus temperatures of the lamps)
- Dimensions: 103 x 67 x 30.5mm
- Approbations: ENEC / K EMA / CE
- Model: TC 126-42
- Lamp Type
- T8: 1 x 18, 25, 30, 36W
- T5: 1 x 24, 39W
- TC-L/F: 1/2 x 18, 24W
- TC-DE/TE: 1/2x 26W
- TC-L: 1 x 36, 40W
- TC-TE: 1 x 32, 42W
- Rated Voltage: 220 ~ 240V, 0/50 ~ 60Hz
- Operation Frequency: 40 ~ 100KHz
- Temperature Range: -25 ~ +60°C
- Dimensions: 103 x 67 x 30.5mm
- Approbations: ENEC / K EMA / CE
- Opposite connecting terminals simplity compliance with the EMC requlations.
- Model: TC 154-58
- Lamp Type
- TC-L: 1 x 55W (55W)
- T8 (T26): 1 x 58W
- T5: 1 x 54W
- Rated Voltage: 220 ~ 240V, 0/50 ~ 60Hz
- Operation Frequency: >40 ~
- Connection of 1-alternatively 2 lamps possible.
- Warm start of lamp possible in every dimming position.
- Slim style.
- Automatic identification of lamps.
- Compact style.
