Product ID: M171

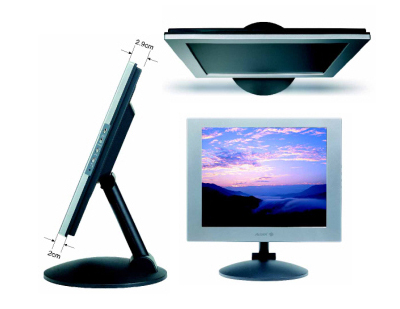

17" LCD Monitor

M171: Analogy

Click here for details.

• Panel Type: 17° TFT LCD
• Maximum Resolution: SXGA 1280 x 1024
• Pixel Dimension: 0.264mm x 0.264mm
• Brightness: 250 cd /m²
• Contrast Ratio: 400 : 1
• Viewing Angle:
• L/R = 80° / 80°
• U/D = 80° / 80°
• Screen Size: 337.920mm(H) x 270.336mm(V)
• Display Colors: 16.7M Colors
• Horizontal Frequency: 31.5KHz ~ 80 KHz
• Vertical Frequency: 56Hz ~ 75Hz
• Pixel Frequency: 135MHz
• Resolution Time: Tr: 12ms / Tf: 4ms (typ)
• Auto-Adjustment: Yes
• Signal Input
• M171: Analog RGB 0.7 Vp-p
• I/O Connectors
• M171: DC power in; VGA in D-sub 15 pin
• Adjust
• M171: Automation Display Quality adjustment, Brightness, Contrast, Color Temperature, Menu Position, etc.
• Power Saving: VESA DPMS standard (4 mode)
• Power Supply: Input AC 110V~240V, Output DC 12V
• Power Consumption: 42W(max), <3W(standby)
• Audio Output: 2W Speaker x 2
• Wall Mounting Interface: VESA flat panel monitor physical mounting interface ( 75mm )
• Stand Tilt: -5° ~30°
• Base H-Rotation: 90° Horizontal
• Dimensions: 435mm(H) x 424.5mm(W) x 205mm(D)
• Weight: 6KG(NW), 8.7KG(GW)
• Agency Approval: FCC, CUL, BSMI, CCIB, CE
• Display Mode
• IBM & VESA VGA
• 640 x 400, 70Hz
• 720 x 400, 70Hz
• 640 x 480, 70Hz
• VESA VGA: 640 x 480, 72 / 75Hz
• VESA SVGA: 800 x 600, 56 / 60 / 72 / 75Hz
• VESA XGA: 1024 x 768, 60 / 70 / 75Hz
• VESA SXGA: 1280 x 1024, 60 / 75Hz
• Specifications are subject to change without notice.
