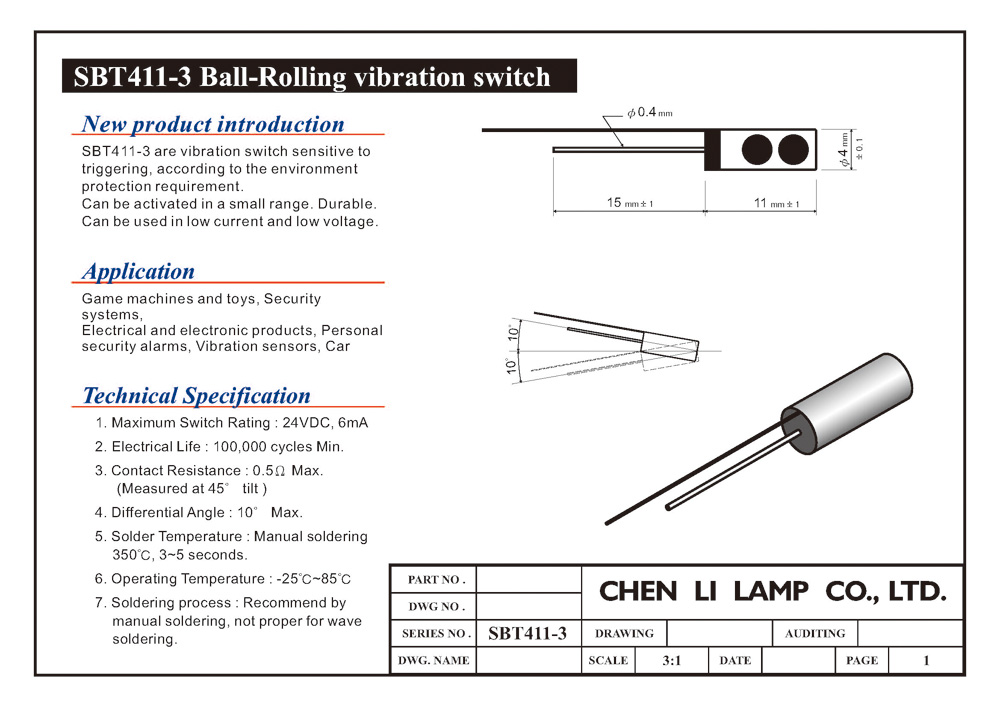

Ball-Rolling Vibration Switch
Product ID: SBT411-3
SBT411-3 vibration switch is sensitive to triggering, according to the environment protection requirement.
Can be activated in a small range. Durable.
Can be used in low current and low voltage.
Key Applications:
Game machines, toys, security systems, electrical and electronic products, personal security alarms, vibration sensors, and car alarms.
- Maximun Switch Rating: 24VDC, 6mA.
- Electrial Life: 100,000 cycles Min.
- Contact Resistance: 0.5Ω Max. (Measured at 45° tilt )
- Different Angle: 10° Max.
- Solder Temperature: Manual soldering 350°C, 3~5 seconds.
- Operating Temperature: -25°C~ 85°C
- Soldering process : Soldering process : Recommend by manual soldering, not proper for wave soldering.
Main Products:
Ball-rolling switch, vibration switch, and micro switch.
