Specifications
- Mechanical Life: 30,000 make-and-break cycles at full load.
- Contact Resistance:
- 20mΩ max. initial @2-4 VDC.
- 100mA for both silver and gold, plated contacts.
- Insulation Resistance: 1,000M Ω min.
- Dielectric Strength: 1,000V RMS @sea level.
- Operating Temperature: -30°C to 85°C.
- Materials
- Case & Bushing: Glass filled nylon 4/6, flame retardant, heat stabilized (UL94 V-0).
- Actuator: Brass, Chrome plated, Internal O-ring seal, Standard for all actuators.
- Switch Support: Brass, Tin plated.
- Terminal / Contact: Copper alloy, with Silver or gold plated.

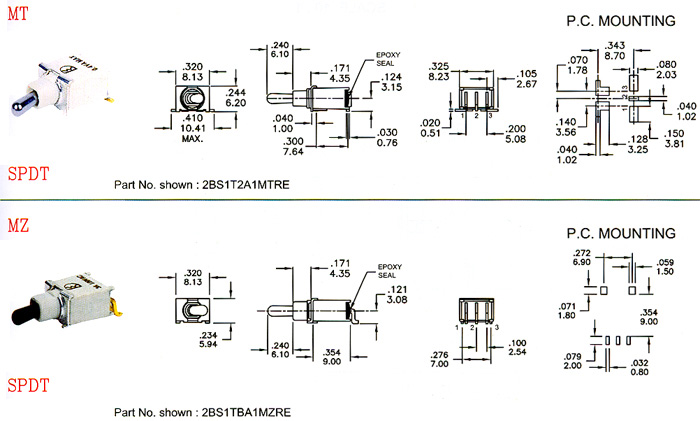

- SMT Sub-Miniature Toggle switches with insulated levers and Tape& Reel package.
