Product ID: SG/SH/SK

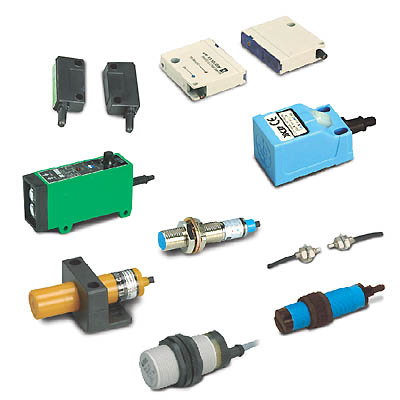

Proximity Switch

When an object (iron, metal, glass or liquid) comes close to the operating distance of a switch, the location of the object will be sensed by the switch by means of inductance rather than contact, and at same time it can convert the signal into a electrical command signal to automatically operate a machine or a system (such as a definite switch, fixed switch and a digital operated impulse etc.). Therefore, a proximity switch is called a "switch of no contact." All its components are built-in semi-conductors and there is no wearing-down caused by moving-parts. The service life of the switch will not be affected by frequent actions of switching on and off. The proximity switch is an electrical switching unit, which can function without physical contact. It operates in three steps: oscillator, trigger and output (amplifier).

Product Introduction 1

Product Introduction 2

Product Introduction 3

Click here for details.

• PHOTOELECTRIC SENSORS
• SENSING METHOD: DIFFUSE REFLECTIVE, RETRO REFLECTIVE, SEPARATE
• SENSING DISTANCE: Min. 10cm
• VOLTAGE RANGE: 10~30V DC OR 20~240V AC
• RESPONSE FREQUENCY: Max. 100Hz
• INDUCTIVE PROXIMITY SENSORS
• SENSING DISTANCE: Min. 1mm
• VOLTAGE RANGE: 10~30V DC OR 24~240V AC
• RESPONSE FREQUENCY: Max. 600Hz
• CAPACITIVE PROXIMITY SENSORS
• SENSING DISTANCE: Min. 8mm
• VOLTAGE RANGE: 10~30V DC OR 90~250V AC
• RESPONSE FREQUENCY: Max. 100Hz

• Minimum Order: Negotiable
