Product ID: DS3

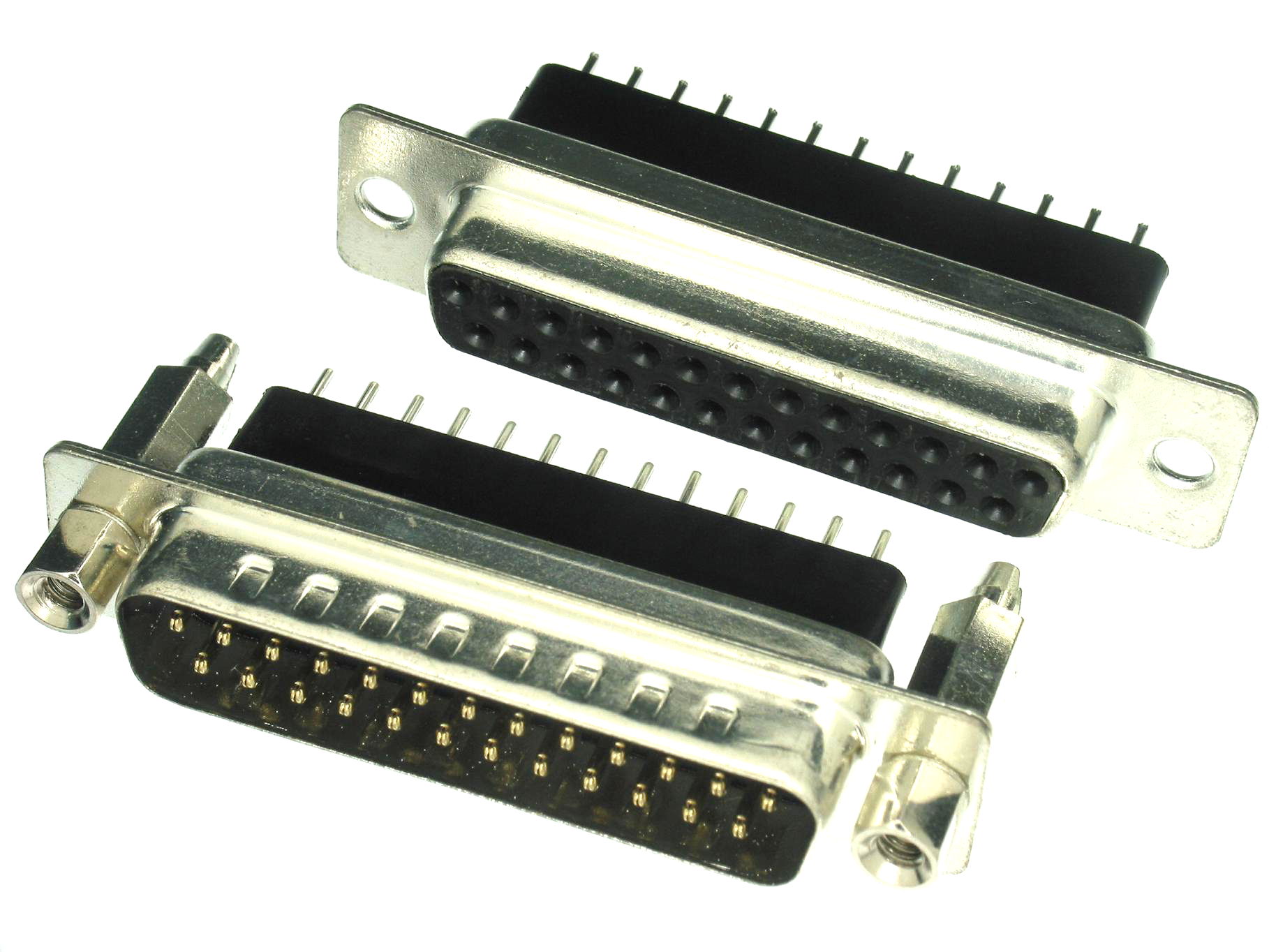

D-SUB PCB STRAIGHT HIGH PROFILE TYPE

fuy@ms34.hinet.net

• 1. Name
• DS3: D-SUB PCB STRAIGHT HIGH PROFILE (STAMPED PIN)
• 2. No. of Contacts
• 09, 15, 25, 37
• 3. Contact Type
• P: Plug
• S: Socket
• 4. Insulator Color
• B: Blue
• K: Black
• W: White
• 5. Contact Plating
• A: Selective Gold
• B: Gold Flash
• E: 15u"
• F: 30u"
• 6. Shell
• B: Tin Plated
• C: Nickel Front and Back
• 7. Special Function
• A: Standard Through Hole
• B: With #4-40, 5.8mm Open Hex Rivet in Front of Connector
• C: With #4-40, 4mm Open Hex Rivet in Back of Connector
• D: With #4-40, 5.8mm Open Hex Rivet in Back of Connector
• E: With #4-40, 5.8mm Hex Rivet Bracket in Back of connector
• F: With #4-40, 5.8mm Hex Rivet Bracket in Back of connector & Attached Hex Jack Screws
• G: With #4-40, 12.7mm Hex Rivet Bracket in Back of connector
• H: With #4-40, 11mm Hex Rivet Bracket in Back of connector
• I: With #4-40, 12.7mm Hex Rivet Bracket in Back of connector & Attached Hex Jack Screws

• Minimum Order: Negotiable
