Winch mounts

Product ID: HS-P6.0

Send Inquiry
The winch mounts product is provided by Fenghua Haisen, a China based manufacturer with years of experiences in producing winch tools.  Established in 2000, Fenghua Haisen keeps the quality of the products in standard.  With the strict quality control system, Haisen has been certificated the ISO, CE and RoHS so far and already won the reputation in the industry.  By providing winch mounts and other related winch products, Haisen also expands the  market worldwide.

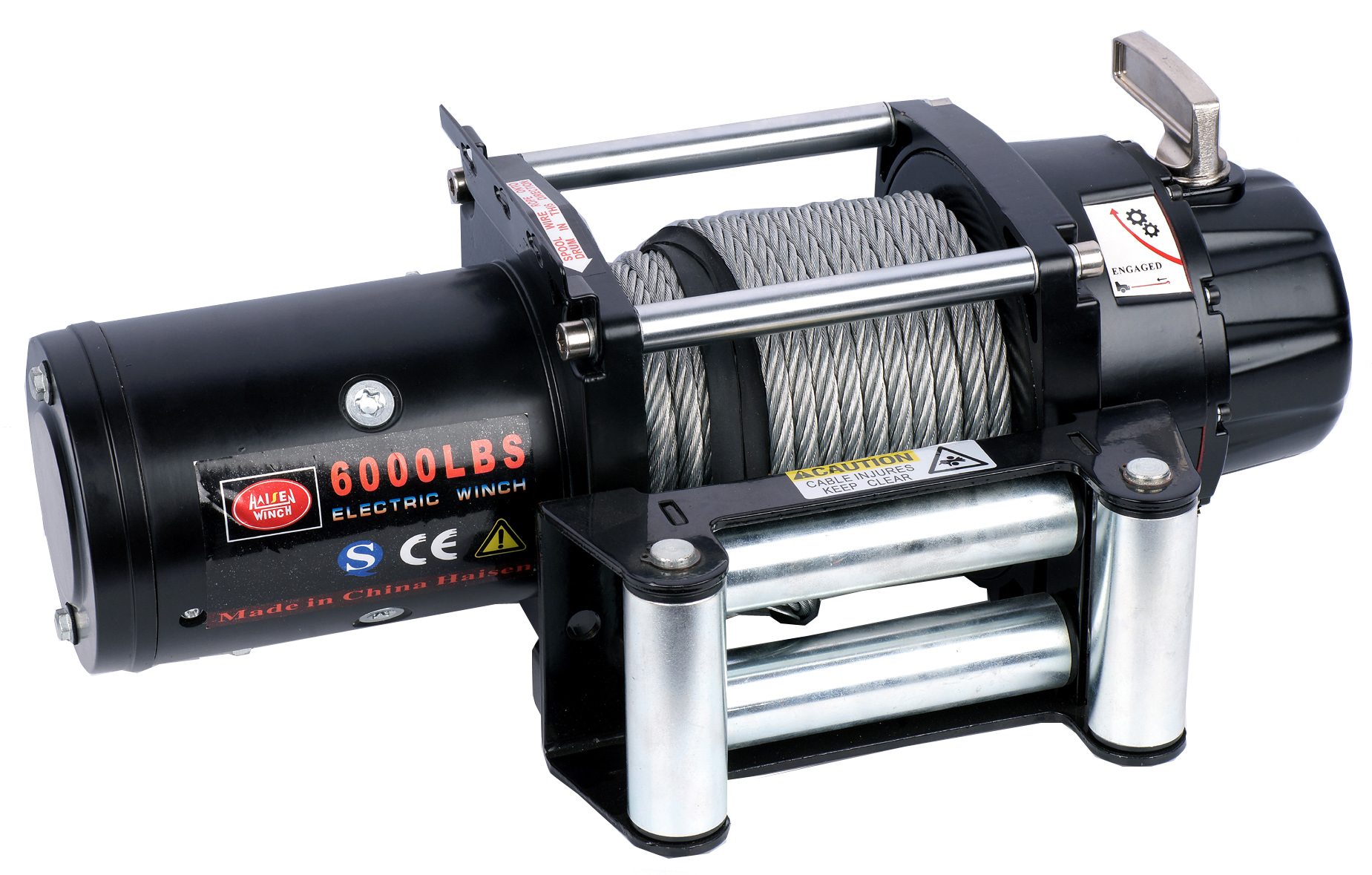

The winches can not only serve customers around the world, but also available for OEM/ODM services. Moreover, Haisen has professional R&D team to innovate products in better condition to meet every demand. The winch mounts HS-P6.0 is produced with much shorter drum and lighter weight, which are convenient for using.  Powered by 12V DC and 5.0 hp/3.7 kw Series Wound, the motor can be initiated along with 6000lbs rated line pull.

With experienced in working on winch products for years. Fenghua Haisen can be regarded as a leader in the industry. Our product line including off-road, electric, boat or ATC winches, winch mounts and accessories are quite welcomed in the industry. If you are interested in our product, please feel free and contact us for more information about the product today!


PERFORMANCE DATA
Line Pull Lbs.(Kgs) Line Speed FT./min(M/min) Motor Current Pull By Layer Layer/Lbs(Kgs)
2000 (908) 20 (6.1) 140 2/5170 (2348)
4000 (1815) 13.8 (4.2) 220 3/4455 (2023)
6000 (2725) 8.2 (2.5) 310 4/3840 (1744)
Specifications
  • Rated Line Pull: 6000lbs (2724kgs)
  • Motor: 12V DC 5.0hp/3.7kw Series Wound
  • Control: handle remote control and Wireless (Optional)
  • Gear Train: All-metal 3-stage planetary
  • Gear Ratio: 172.8:1
  • Clutch (free spooling): Sliding ring gear
  • Brake: Automatic In-The-Base
  • Rope: 9/32'' diameter, 79' (7.2mm x 24m)
  • Drum Diameter/Length: 2.51”/5.27”(64mm/134mm)
  • Mounting Bolt Pattern:6.45”x4.5”(164mm x 114.3mm )
  • Fairlead: 4-Way Roller Fairlead
  • Recommended Battery: 650 CCA minimum for winching
  • Battery Leads: 2 gauge, 73'' ( 1.85m )
  • Duty Cycle: Intermittent
  • Winch Dimension:17.8" x 6.3" x 6.4" ( 453mm x 160mm x 162mm )
  • Packing Dimension: 22.4" L x 13"D x 9.9"H (570mm x 330mm x 250mm)
  • Shipping Weight: 62lbs (28kgs)
Certificate
  • ISO
  • CE
  • RoHS

Main Products

Electric winches, 4x4 winches, ATV winches, off-road winches
