PIR Sensor

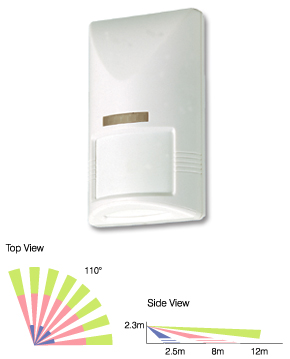

The IR-550P PEGASO is a passive infrared detector with pet-immunity detection. Utillizing patent pending Target Size Verification (TSV) technology, this state-of-the-art motion detector is able to immune the detection of domestic pet up to 18 kgs (40 lb).

It shares the same housing with other 550-series sensors. System designer can easily select various sensors to harmonize the interior decor with uniform appearence.

This detector provides every security professional the leading edges with its superior reliability in intrusion detection.

Specifications:

• Infrared sensor: Dual element
• Power supply: 9 ~ 16 VDC, 12 VDC typical
• Current drain
• NC: 5 mA
• NO: 15 mA, @12 VDC
• Alarm output: N.C/N.O 30VDC, 0.2A max.
• Alarm period: 2 ±0.5 sec.
• Pulse count: 2 / 3 selectable
• Detection range: 110°, 12 x 12 m at 25°C
• Tamper switch: N.C cover open activates
• Walk test LED: Red, can be disabled
• RFI immunity: Ave. 20V/m (10 ~ 1,000 MHz)
• Detectable speed: 0.3 ~ 1.5m/sec.
• Mounting height: 2.3 m typical
• Humidity 95% RH maximum
• Op. temperature -20°C ~ 60°C (-4°F ~ 104°F)
• Dimensions 112 x 66 x 45 mm

Features:

• Target Size Verification (TSV) technology.
• Superior RFI and EMI immunity.
• Temperature compensation.
• Noise reduction circuit.
• Sealed optics protection.
• Disabled walk test LED.
• Ultra wide wiring space.
• Selectable pulse count.
• NC/NO selectable alarm output.
• Up to 18 kgs pet immunity detection.
