Jiann Wa Electronics Co., Ltd.

Print this page Send an inquiry
Product

Product ID: 25

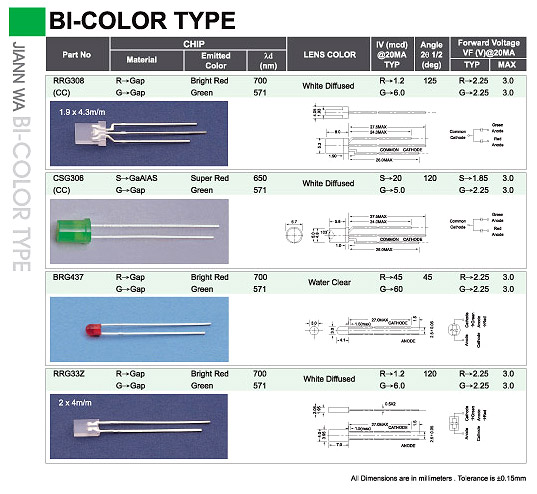

BI - Color LED



 BI - Color LED(25)

Click here for details.


Part No. Chip: Material Chip: Emitted Color Chip: λd (nm) Lens Color IV (mcd) @ 20MA TYP Angle 2θ 1/2 (deg) Forward Voltage VF (V) @ 20MA: TYP Forward Voltage VF (V) @ 20MA: MAX
RRG308 (CC) R → Gap Bright Red 700 White Diffused R → 1.2 125 R → 2.25 3.0
RRG308 (CC) G → Gap Green 571 White Diffused G → 6.0 125 G → 2.25 3.0
- - - - - - - - -
CSG306 (CC) S → GaAIAS Super Red 650 White Diffused S → 20 120 S → 1.85 3.0
CSG306 (CC) G → Gap Green 571 White Diffused G → 5.0 120 G → 2.25 3.0
- - - - - - - - -
BRG437 R → Gap Bright Red 700 Water Clear R → 45 45 R → 2.25 3.0
BRG437 G → Gap Green 571 Water Clear G → 60 45 G → 2.25 3.0
- - - - - - - - -
RRG33Z R → Gap Bright Red 700 White Diffused R → 1.2 120 R → 2.25 3.0
RRG33Z G → Gap Green 571 White Diffused G → 6.0 120 G → 2.25 3.0

Main Product:
Color Lamp, Flux LED, Bi-Color Leds, White Leds, Blue Leds, Emitting Color of LED Lamp for Red, Orange, Yellow, Green, Blue, UV, White ...

Ordering information:
  • Minimum Order: Negotiable
  • TEL: 886-4-26561373
  • FAX: 886-4-26566418
  • E-mail: jiannwa@ms35.hinet.net, jiannwa.led@msa.hinet.net
