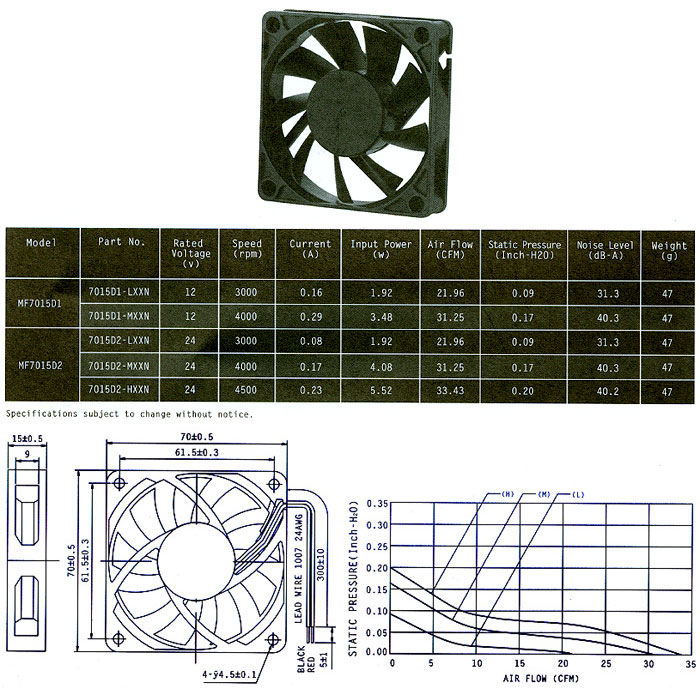

DC Axial Fan Motor
Product ID: MF7015
- Size
- 70 x 70 x 15mm (2.76 x 2.76 x 0.79 inch.)
- Motor
- Brushless DC Motor
- Motor Protected
- Polarity + Impendence ZP
- Option Function
- I: Auto-Restart IC
- F: Thechometer
- Q: Alarm Low IC
- R: Alarm High IC
- Frame
- PBT + 30% Fiber glass. Black color UL94V-0.
- Impeller
- PBT + 30% Fiber glass. Black color UL94V-0.
- Lead Wire
- 1007# 26AWG. UL / CSA.
- Insulation Resistance
- Min 10M Ohm at 500VDC between terminal and the frame.
- Dielectric Strength
- 1 sec at 800VAC 50/60Hz between lead wire and frame.
- Bearing Type
- B: 2 Ball Bearing
- S: Sleeve Bearing
- Operating Temp
- Ball Bearing: Within -20 ~ 80°C
- Sleeve Bearing: Within -10 ~ 56°C
- Net Weight
- 47 Grams
- Keyword
- DC Axial Fan Motor, DC Cooling Fan, DC FAN, Cooling Fan
- Specifications subject to change without notice.
| Model | Part No. | Rated Voltage | Speed | Current | Input Power | Air Flow | Static Pressure | Noise Level | Weight |
|---|---|---|---|---|---|---|---|---|---|
| MF7015D1 | 7015D1-LXXN | 12 V | 3,000 rpm | 0.16 A | 1.92 W | 21.96 CFM | 0.09 Inch/H²O | 31.3 dB-A | 47 g |
| MF7015D1 | 7015D1-MXXN | 12 V | 4,000 rpm | 0.29 A | 3.48 W | 31.25 CFM | 0.17 Inch/H²O | 40.3 dB-A | 47 g |
| MF7015D2 | 7015D2-LXXN | 24 V | 3,000 rpm | 0.08 A | 1.92 W | 21.96 CFM | 0.09 Inch/H²O | 31.3 dB-A | 47 g |
| MF7015D2 | 7015D2-MXXN | 24 V | 4,000 rpm | 0.17 A | 4.08 W | 31.25 CFM | 0.17 Inch/H²O | 40.3 dB-A | 47 g |
| MF7015D2 | 7015D2-HXXN | 24 V | 4,500 rpm | 0.23 A | 5.52 W | 33.43 CFM | 0.20 Inch/H²O | 40.2 dB-A | 47 g |
