RF remote type vehicle access control system

Product ID: PR-2752

Send Inquiry

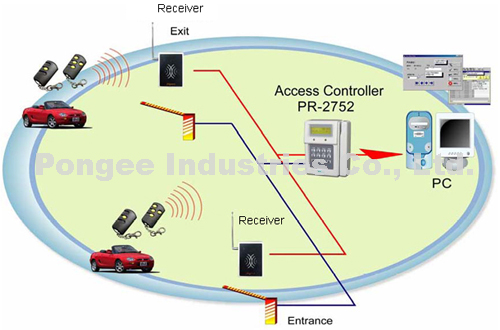

•For car parking or door access control system with reading.

•With 2 RF receiver ports and anti-pass back function.

•Up to 9999 card holder / 6000 events.

•Support Standalone operation or PC On-line communication through RS -232C or RS-422 or RS-485.
Anti-pass:back For one door anti-pass back
Reset:Watchdog timer, power reset, self recovery watchdog ( optional )
Indicators:LED's ( one bicolor and one yellow ) and buzzer for sound indication
Specifications
  • Dimensions: 156(L)x 123(W)x 42(H)mm
  • Weight: 1370g
  • Operation temperature: 0°C ~ 55°C
  • Humidity: 20%~90% RH, Non condensation
  • Code:Hopping code or Pegasus code
  • Card:transmitter
  • Communications:RS -232C , or RS-422 or RS-485
  • Display:16 x 2 lines LCD and LED backlighted
  • Keypad:4 x 3 membrane for system programming, Password entry, duty code selection
Features
  • With built-in quartz real time clock for time zone control & time recording.
  • With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.
  • Standalone / Network communication through RS -232C /RS-422/ RS-485.
  • Up to 9999 card holder / 6000 events.
  • Operation modes : Transmitter only.
  • 10 years for real time clock and transaction data retention at power failure CMOS CPU with low power consumption & watchdog function.
  • We reserve the right to change the specification without notice or obligation!
