AC Fan
Product ID: SJ8025LA2SAT (L)
-

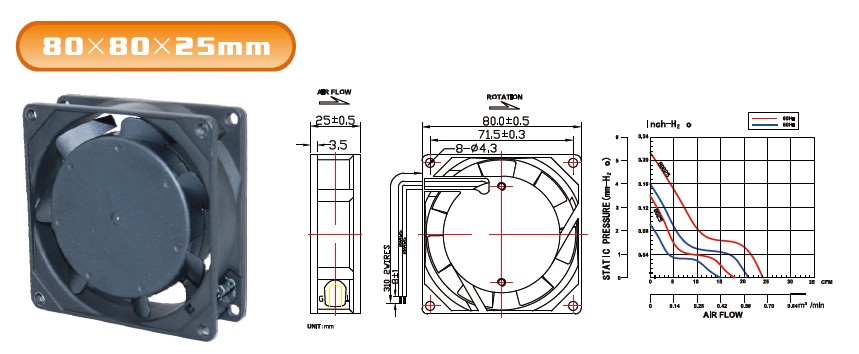

- Square Frame : 80 mm * 80 mm
- Housing Thickness : 25 mm
- Bearing System : Sleeve
- Rated Vottage(V) : 220 / 240
- Freq.(hz) : 50 / 60
- Current(A) : 0.07 / 0.06
- Input Power(W) : 13 / 10
- Speed(RPM) : 1900 / 2400
- Air Flow(CFM) : 15 / 18
- Air Flow(m3/min) : 0.42 / 0.51
- Static Pressure(lnch-H2 o) : 0.09 / 0.14
- Noise Level(db-A) : 27 / 31
Certificate:
- CE
- TUV -LVD
- TUV-EMC
- UL
- cUL
- CCC
|
Model |
Part No. |
Bearing System |
Rated Voltage |
Freq. |
Current |
Input Power |
Speed |
Air Flow | Air Flow | Static Pressure | Noise Level |
|
( V ) |
( Hz ) |
( A ) |
( W ) |
(RPM) |
(CFM) | (m3/min) | (lnch-H2 o) | (db-A) | |||
| SJ8025 | SJ8025HA1BAT (L) | Ball | 110/120V | 50/60 | 0.14/0.12 | 12/9 | 2600/3100 | 21/24 | 0.59/0.68 | 0.16/0.22 | 32/35 |
| SJ8025HA1SAT (L) | Sleeve | 110/120V | 50/60 | 0.14/0.12 | 12/9 | 2600/3100 | 21/24 | 0.59/0.68 | 0.16/0.22 | 32/35 | |
| SJ8025LA1BAT (L) | Ball | 110/120V | 50/60 | 0.14/0.12 | 12/9 | 1900/2400 | 15/18 | 0.42/0.51 | 0.09/0.14 | 27/31 | |
| SJ8025LA1SAT (L) | Sleeve | 110/120V | 50/60 | 0.14/0.12 | 12/9 | 1900/2400 | 15/18 | 0.42/0.51 | 0.09/0.14 | 27/31 | |
| SJ8025HA2BAT (L) | Ball | 220/240V | 50/60 | 0.07/0.06 | 13/10 | 2600/3100 | 21/24 | 0.59/0.68 | 0.16/0.22 | 32/35 | |
| SJ8025HA2SAT (L) | Sleeve | 220/240V | 50/60 | 0.07/0.06 | 13/10 | 2600/3100 | 21/24 | 0.59/0.68 | 0.16/0.22 | 32/35 | |
| SJ8025LA2BAT (L) | Ball | 220/240V | 50/60 | 0.07/0.06 | 13/10 | 1900/2400 | 15/18 | 0.42/0.51 | 0.09/0.14 | 27/31 | |
| SJ8025LA2SAT (L) | Sleeve | 220/240V | 50/60 | 0.07/0.06 | 13/10 | 1900/2400 | 15/18 | 0.42/0.51 | 0.09/0.14 | 27/31 |
Main Products:
AC cooling fan,AC axial fan,Fan guard
