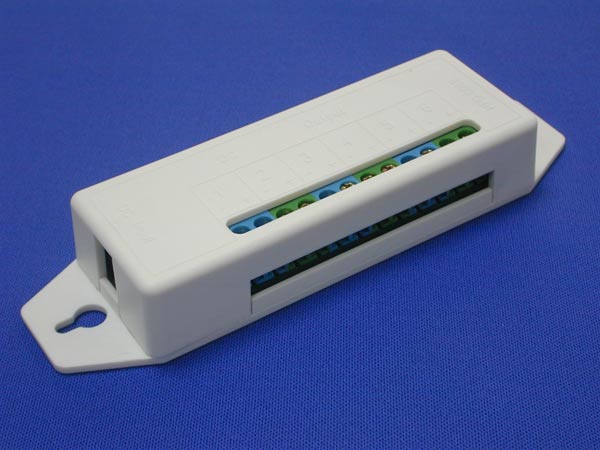

Constant Current Driver
Product ID: HPD006B-C Series
| Part No. | Input Condition | Output | Application(Number of LED) | |
|---|---|---|---|---|
| HPD006B-C1-1 | DC5V | 3~4V/350mA | 6 channels, 1W×1pcs /Channel | |
| HPD006B-C3-1 | DC5V | 3~4V/700mA | 6 channels, 3W×1pcs/Channel | |
| HPD006B3ADJ-C1-1 | DC5V | 3~4V/10~350mA | 3 channels, 1W×1pcs/Channel/Current adjustable | |
| HPD006B3ADJ-C3-1 | DC5V | 3~4V/10~700mA | 3 channels, 3W×1pcs/Channel/Current adjustable | |
| HPD006B(DC 5V Input) Electrical Characteristics | ||||
| Parameter | HPD006B-C1-1 | HPD006B-C3-1 | HPD006B3ADJ-C1-1 | HPD006B3ADJ-C3-1 |
| Input Voltage | DC5V/2.5A | DC5V/5A | DC5V/2.5A | DC5V/5A |
| Output Voltage Range | 3~4V | 3~4V | 3~4V | 3~4V |
| High Power LED | 1W*1pcs | 1W*1pcs | 1W*1pcs | 1W*1pcs |
| Output Current Range | Min310~Typ350~Max390mA | Min630~Typ700~Max850mA | Min10~Max400mA | Min10~Max750mA |
| Operating Ambient Temperature | 25°C | 25°C | 25°C | 25°C |
| Max Temperature on Heatsink | 90°C | 90°C | 90°C | 90°C |
