China SSR Manufactory
Product ID: SA66300D
Gold is one of the leading China SSR Manufactory services manufacturer and supplier based in Wuxi, specialized in the field of Solid State Relay(especially the research and production) for over ten years. Not only focus on the market of China, we also promote our quality products to the world.
We provide high quality China SSR Manufactory Services with many certifications such as UL,CE, and RoHS. It's worth mentioning that our Solid State Relay not only provides great capacity, but with the most comparative price.

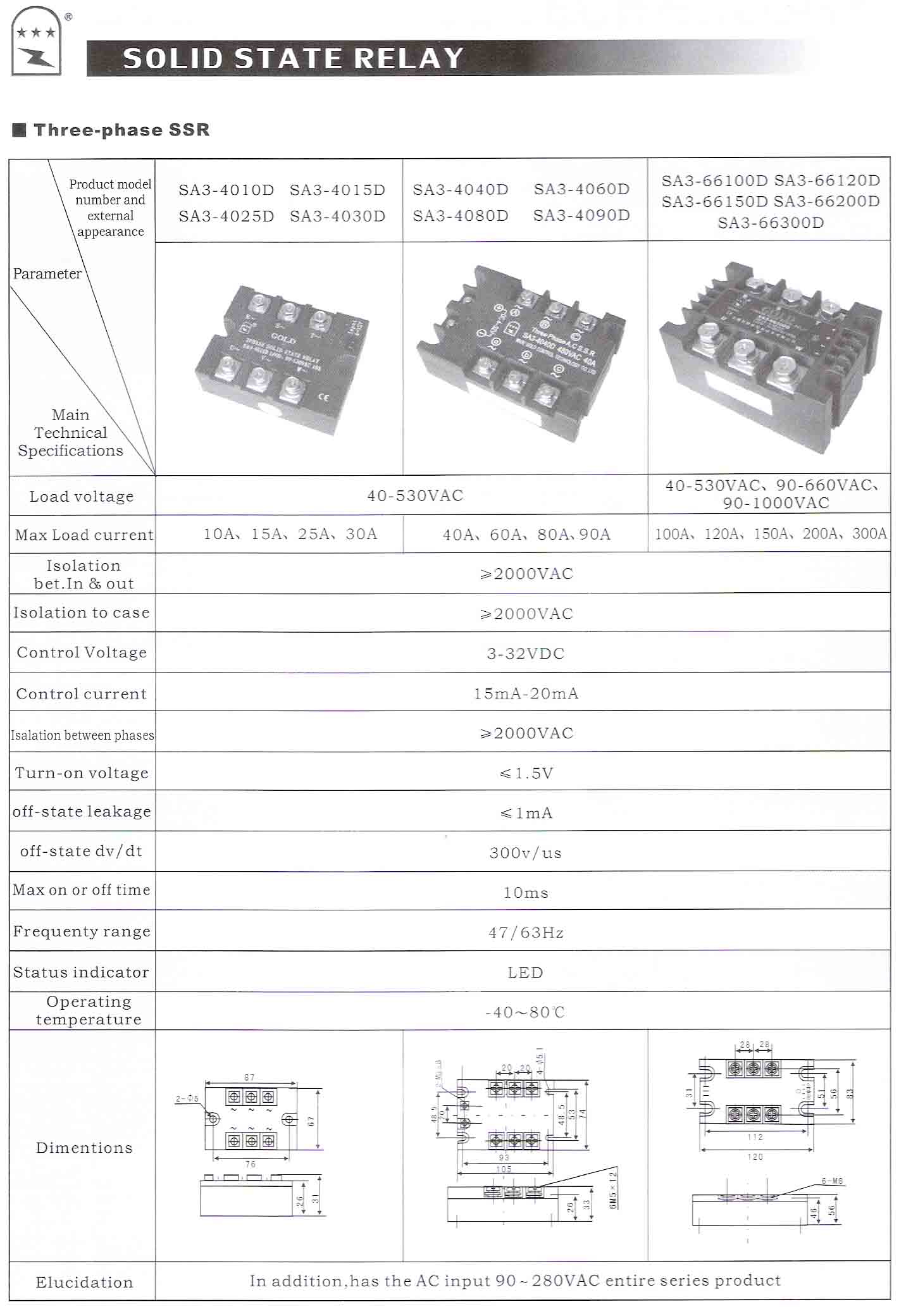

- Load voltage: 90-660VAC
- Max Load Current:10A-300A
- Isolation between In& Out: ≥2000VAC
- Isolation to case: ≥2000VAC
- Control Voltage: 3-32VDC
- Control Current:15mA-20mA
- Turn-on Voltage:≤1.5V
- Off-state Leakage:≤1mA
- Off-state Dv/Dt: 300v/us
- Max On or Off Time:10ms
- Frequenty Range:47~63Hz
- Status indicator: LED
- China SSR Manufactory Product Operating Temperature:-40~80°C
- CE UL ROHS
Main Products:
Solid State Relays,Controller,Semiconductors,Modules,relay,ssr,switch,component
