Caware International Co., Ltd.

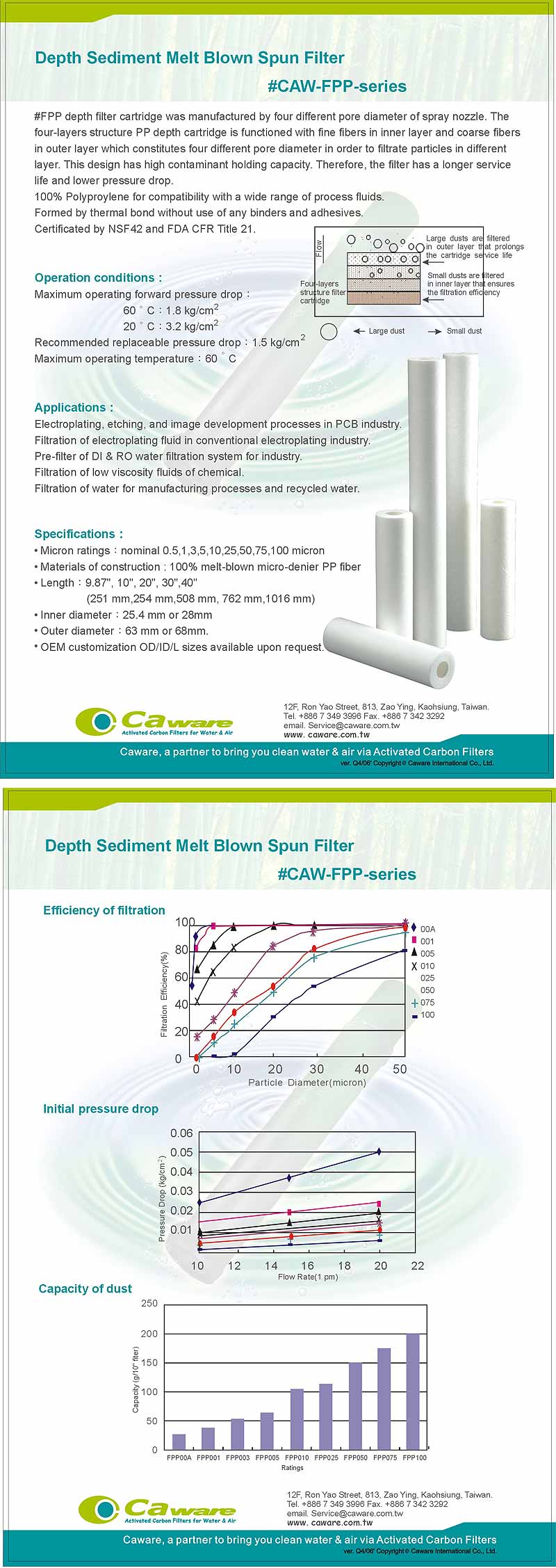

Depth Sediment Spun Filter Cartridge (#CAW-FPP-series)

Specifications:
#FPP depth filter cartridge was manufactured by four different pore diameter of spray nozzle. The four-layers structure PP depth cartridge is functioned with fine fibers in inner layer and coarse fibers in outer layer which constitutes four different pore diameter in order to filtrate particles in different layer. This design has high contaminant holding capacity. Therefore, the filter has a longer service life and lower pressure drop. 100% PP for compatibility with a wide range of process fluids. Formed by thermal bond without use of any binders and adhesives. Certificated by NSF42 and FDA CFR Title 21. Operation conditions: Maximum operating forward pressure drop: 60°C: 1.8 kg/cm2; 20°C: 3.2 kg/cm2 Recommended replaceable pressure drop: 1.5 kg/cm2 Maximum operating temperature: 60°C Applications of product: Electroplating, etching, and image development processes in PCB industry. Filtration of electroplating fluid in conventional electroplating industry. Pre-filter of DI & RO water filtration system for industry. Filtration of low viscosity fluids of chemical. Filtration of water for manufacturing processes and recycled water. Product specifications Micron ratings: normal 0.5, 1,3, 5, 10, 25, 50, 75, 100 micron Materials of construction: 100% melt-blown micro-denier PP fiber Length: 9.87", 10", 20", 30", 40" (251 mm, 254 mm, 508 mm, 762 mm, 1016 mm) Inner diameter: 25.4 mm or 28mm Outer diameter: 63 mm or 68mm OEM customization sizes available upon request. Certificate:
