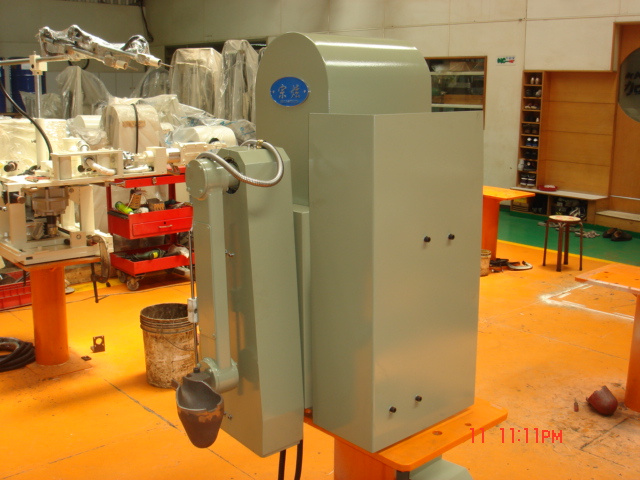

Automatic Ladle Machine
Product ID: 05
Suit to 100t to 1600t Die Casting Machine.
- It's easy and convenient to adjust lading volume of molten metal.
- It can be adjust arm-driving speed.
- The single arm style ladle can precisely stop in lading position.
- It's fast in feeding with fantastic efficiency.
- With PLC control system and errors display.
| Specification/Mode | JSLA1 | JSLA2 | JSLA3 | JSLA4 | JSLA5 | JSLA6 | JSLA8 |
|---|---|---|---|---|---|---|---|
| Die Casting M/C | 125- 200T | 250- 400T | 500- 630T | 650- 800T | 1000T | 1250T | 1600T以上 |
| Ladling Volume | 0.3 ~ 1.5kg | 1.0 ~ 3.5kg | 1.5 ~ 4.5kg | 2.5 ~ 6.5kg | 12kg以下 | 12kg- 20kg | 12kg- 25kg |
| Ladling speed | Max.12sec | Max.15sec | Max.18sec | Max.18sec | Max. 20sec | Max. 20sec | Max. 20sec |
| Ladling Tolerance | +/-2% | +/- 2% | +/- 2% | +/- 2% | +/- 2% | +/- 2% | +/- 2% |
| Diameter of Crucible | Min.450mm | Min.480mm | Min.550mm | Min.550mm | Min.650mm | Min.800mm | Min.850mm |
| Ladling Depth | Min.350mm | Min.350mm | Min.350mm | Min.450mm | Min.450mm | Min.500mm | Min.550mm |
| Driving KVA/Arm | AC400W | AC400W | AC750W | AC750W | AC750W | AC1500W | Ac2200W |
| Driving KVA/Ladle | AC200W | AC200W | AC400W | AC400W | AC400W | AC750W | AC750W |
| Power supply | 380- 220V50Hz | 380- 220V50Hz | 380- 220V50Hz | 380- 220V50Hz | 380- 220V50Hz | 380- 220V50Hz | 380- 220V50Hz |
| Operation Power | DC24V | DC24V | DC24V | DC24V | DC24V | DC24V | DC24V |
| Power Capacity | 1KVA | 1KVA | 1KVA | 1KVA | 1.5KVA | 1.5KVA | 1.5KVA |
| Weight | 260KG | 280KG | 385KG | 400KG | 945KG | 947KG | 950KG |
Main Products:
die casting machine,vacuum machine,automatic ladle machine,melting holding furnace,electrice melting holding crucible furnace,mold temperature controller
