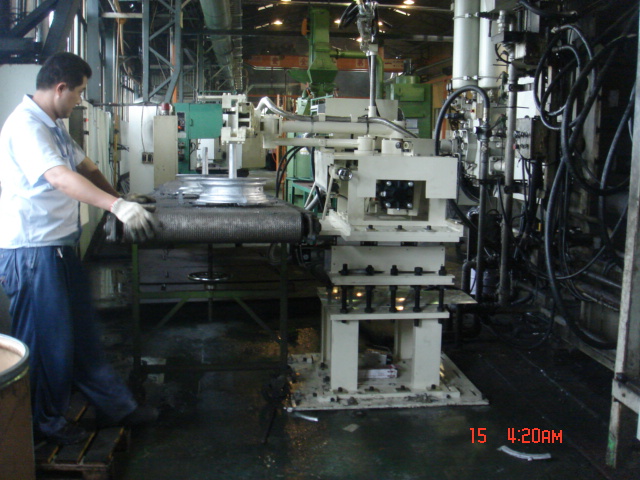

Auto extractor machine

Suit to 100t to 1600t Die Casting Machine.
It can be as a self-actor, also it can be equipped with casting machine, and spraying machine for fully Automated production.
The extractor can be taken out inside of the caster.
It can be forward and backward clamping, and make it more convenient.
An accessory of elevator equipment can link the press machine and make a labor-saving device.
With PLC control system and errors display.

Click here for details.

Specification/Mode	JSEA1	JSEA2	JSEA3	JSEA4	JSEA5	JSEA6	JSEA7
Die Casting M/C	160 - 200T	250 - 400T	500 - 630T	800T	1000T	1250 -1350T	1600T
Fixed mold's width	900mm	1100mm	1300mm	1450mm	1500mm	1600mm	1700mm
Cramping handle's diameter	£X40 -60mm	£X50 -90mm	£X60-100mm	£X70 - 120mm	£X70 - 120mm	£X80 -130mm	£X80 - 140mm
Drawing force	68kgf	68kgf	98kgf	98kgf	98kgf	98kgf	98kgf
Adjusting distance of drawing direction	200mm	250mm	350mm	400mm	500mm	500mm	500mm
Cramping handle force	680kgf	900kgf	1000kgf	1100kgf	1450kgf	1450kgf	1500kgf
Air-compression source	4-6.5 kgf /cm2	4-6.5 kgf /cm24-6.5 kgf /cm2	4-6.5 kgf /cm2	4-6.5 kgf /cm2	4-6.5 kgf /cm2	4-6.5 kgf /cm2	4-6.5 kgf /cm2
Air-compression enter size	PT3/8"	PT3/8"	PT3/8"	PT3/8"	PT1/2"	PT1/2"	PT1/2"
Weight of cramping working-piece	3kg	4kg	6kg	8kg	12kg	15kg	20kg
Fixed method	Rigid Type	Rigid Type	Landing Type	Landing Type	Landing Type	Landing Type	Landing Type
Weight	365KG	380KG	1200KG	1300KG	1340KG	1355KG	1405KG

Main Product:
die casting machine,vacuum machine,automatic ladle machine,melting holding furnace,electrice melting holding crucible furnace ...

Ordering information:

Minimum Order: Negotiable
TEL: 886-2-88115809
FAX: 886-2-25567748
E-mail: chinyen1768@yahoo.com.tw
