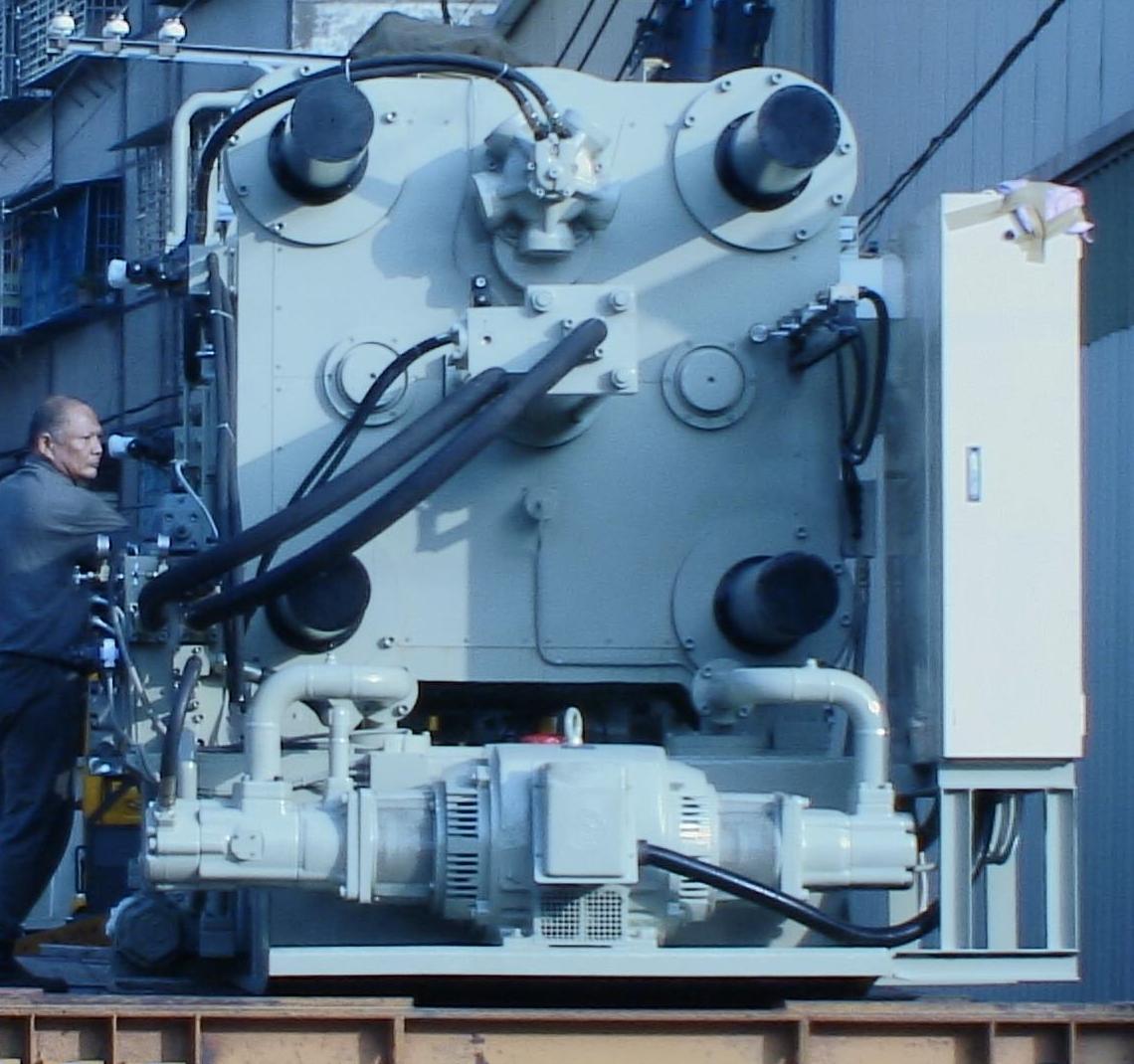

Die Casting Machine (2)

Automatic Die Casting Machine and peripheral equipment, Clamping force form 100t to 1000t.
Products covered: Car/motorcycle parts, transportation facilities, home appliances, architectural metal ware, electrical equipment, telecommunication equipment, precision instruments, industrial machines and office machines.

Click here for details.

Features:

By applying low hydraulic pressure, the temperature of oil will not rise (maintained at 48-50 degree). With low failure rate of the parts, long lifetime of the machine is certain.
When the machine is inactive, zero loading will be applied to hydraulic device, which will save 30% of electric power.
Effective pressure intensification, which can increase the pressure 2-3 times higher, will achieve an absolute result of pressure rise.
The absolutely effective injection and powerful injection force are the major advantages of our die-casting machine.
Automatic mold setup and mold thickness adjustment can initiate the production status for the die casting in the shortest period of time.
Complete design can increase 30% of yield per hour.
P.L.C. control is implemented, so the machine is easy to operate and perform maintenance (oneself manual maintenance is also allowed)
To fulfill the yield requirements for our customers, the machine can operate without stopping for a long period of time.

.	Item	Unit	CH400CI	CH500CL	CH650CL	CH800CL
Clamping System	Clamping force	ton	400	500	680	900
Clamping System	Die plate dimension	mm	950*950	1120*1120	1250*1250	1520*1520
Clamping System	Tie bar distance	mm	600*600	700*700	800*800	1000*1000
Clamping System	Die height, max	mm	750	800	850	1000
Clamping System	Die height, min	mm	320	400	400	400
Clamping System	Die stroke	mm	420	500	650	760
Clamping System	tie bar diameter£r	mm	125	150	170	190
Injetion System	Shot force	ton	48	54	62	85
Injetion System	Intensifier	kg/cm	100-300	100-300	100-300	100-300
Injetion System	Plunger storke£r	mm	500	550	720	760
Injetion System	Plunger tip penetration	mm	200	240	340	360
Injetion System	Standard plunger tip diameter	mm	60-90	70-90	70-90	80-100
Ejection System	Ejecting force	ton	18	22	32	40
Ejection System	Ejecting stroke	mm	120	120	140	160
Ejection System	Ejecting time(abjustable)	sec	0-999	0-999	0-999	0-999
Ejection System	Ejecting time(abjustable)	sec	0-999	0-999	0-999	0-999
Neutron System	Electromagnetic valve	PT	3/4" 2 Set	3/4" 2 Set	2 set	3/4" 2 Set
Neutron System	Oil take-out port	PT	3/4" 2 Set	3/4" 2 Set	3/4" 2 Set	3/4" 2 Set
Neutron System	Plug socket	--	4 Set	4 Set	4 Set	4 Set
Hydraulic system	Die pressure	kg/cm	15-140	15-140	15-140	15-140
Hydraulic system	Ejectibg pressure	kg/cm	80-140	80-140	80-140	80-140
Hydraulic system	Intensifier pressure	kg/cm	100-300	100-300	100-300	100-300
Hydraulic system	Pump pressure	kg/cm	140	140	140	140
Hydraulic system	Accumulate model and quantity	L/T	40/2T	40/2T	60/2T	80/2T
Hydraulic system	Colling water	1/min	650	650	650	650
Electric System	Control system	Japan script	P.L.C	P.L.C	P.L.C	P.L.C
Electric System	Motor	HP	30HP	40HP	50HP	60HP
Electric System	Power source	V	220-380	220-380	220-380	220-380
Electric System	Control panel size(LWH)	mm	8003601400	8003601400	8003601400	8003601400
Machine Size	Weight	ton	19.2	26	42.6	57.8
Machine Size	Machine size	mm	545017502565	699018202978	870028602780	910030002980
Machine Size	Delivery date	day	75	100	120	150

Main Product:
die casting machine,vacuum machine,automatic ladle machine,melting holding furnace,electrice melting holding crucible furnace ...

Ordering information:

Minimum Order: Negotiable
TEL: 886-2-88115809
FAX: 886-2-25567748
E-mail: chinyen1768@yahoo.com.tw
