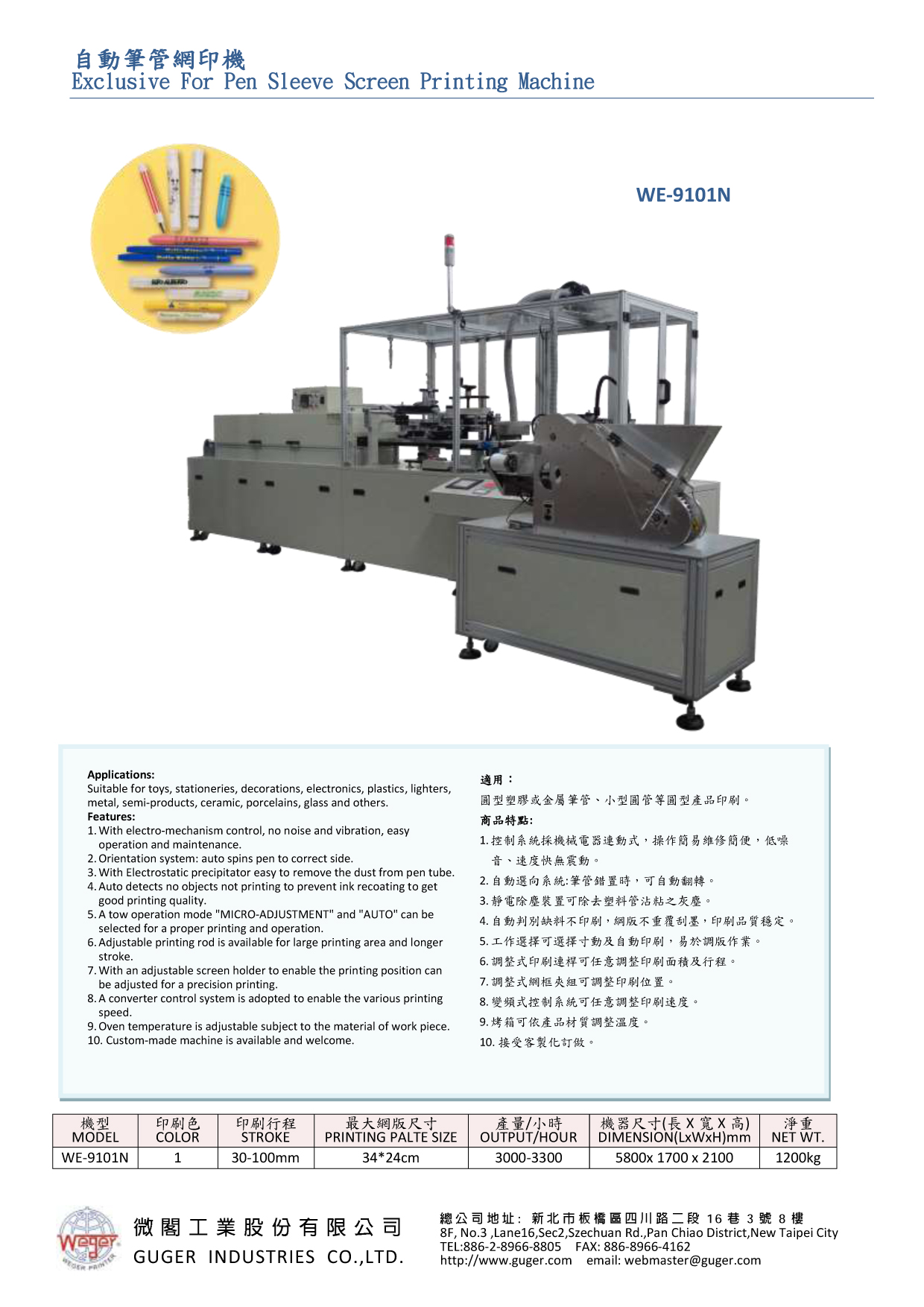

Exclusive For Pensleeve Screen Printing Machine
Product ID: WE-9101
- Application:
- Suitable for round type plastic or metal pens, small round tubes and other, etc.
- Max Printing Area (mm) : 30 x 150 φ30
- Output / Hour : 3,000 x 4,800
- Dimension (L x W x H) : 4,330 x 800 x 1,820 (mm)
- Net WT : 1,000kg
- With electro-mechanism control requires no compressed air, no noise and vibration, easy operation and maintenance.
- A tow operation mode "MICRO-ADJUSTMENT" and "AUTO" can be selected for a proper printing and operation.
- Adjustable printing rod is available for large printing area and longer stroke.
- With an adjustable screen holder to enable the printing position can be adjusted for a precision printing.
- A conveter control system is adopted to enable the various printing speed.
- Oven temperature is adjustable subject to the material of workpiece.
- Custom-made machine is available and welcome.
