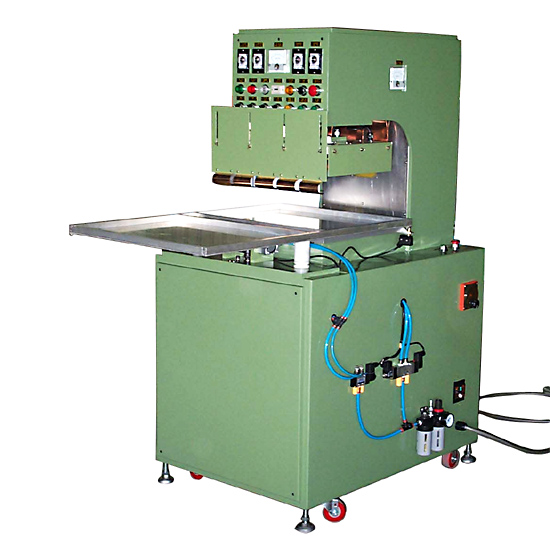

High Frequency Plastic Welding Machine - High Frequency Manual Rotary Table Plastic Blister Welding Machine
Product ID: HW-403R2, 503R2, 603R2, 803R2
New oscillation case design; strong, durable and reliable machine.
The manual rotary table is easy to operate, and can rotate and position accurately.
Electrical pre-heat flat mold base loads/unloads molds promptly and supports easy horizontal adjustment.
High-sensitivity ARC suppressor features quick response and high stability.
- May weld PVC or PET, PET-G.
- Plastic blister welding package.
| Model | HW-403R2 | HW-503R2 | HW-603R2 | HW-803R2 |
|---|---|---|---|---|
| Max. HF Output Power | 4KW | 5KW | 6KW | 8KW |
| Oscillation Frequency | 27.12 MHz | 27.12 MHz | 27.12 MHz | 27.12 MHz |
| Power Source | SP or 3P AC220/380/415/440V,50/60Hz | SP or 3P AC220/380/415/440V,50/60Hz | 3P AC220/380/415/440V,50/60Hz | 3P AC220/380/415/440V,50/60Hz |
| Input Power | 6.5KVA | 8.5KVA | 10KVA | 15KVA |
| Rectifier | Silicon Rectifier | Silicon Rectifier | Silicon Rectifier | Silicon Rectifier |
| Distance Between Upper & Lower Electrodes | 250 mm | 250 mm | 250 mm | 250 mm |
| Press Stroke | 200 mm | 200 mm | 200 mm | 200 mm |
| Dimension of Top Platen | 250 x 350 mm | 250 x 350 mm | 350 x 500 mm | 350 x 500 mm |
| Press Operation | Pneumatic Type | Pneumatic Type | Pneumatic Type | Pneumatic Type |
| Max. Pressure | 250 kgs/cm² | 250 kgs/cm² | 250 kgs/cm² | 350 kgs/cm² |
| Net Weight of Machine | 350 kgs | 350 kgs | 1,100 kgs | 1,200 kgs |
| Gross Weight of Machine | 530 kgs | 530 kgs | 1,350 kgs | 1,450 kgs |
| Packing Dimension | 145 x 165 x 180 cm | 145 x 165 x 180 cm | 155 x 195 x 180 cm | 155 x 195 x 180 cm |
