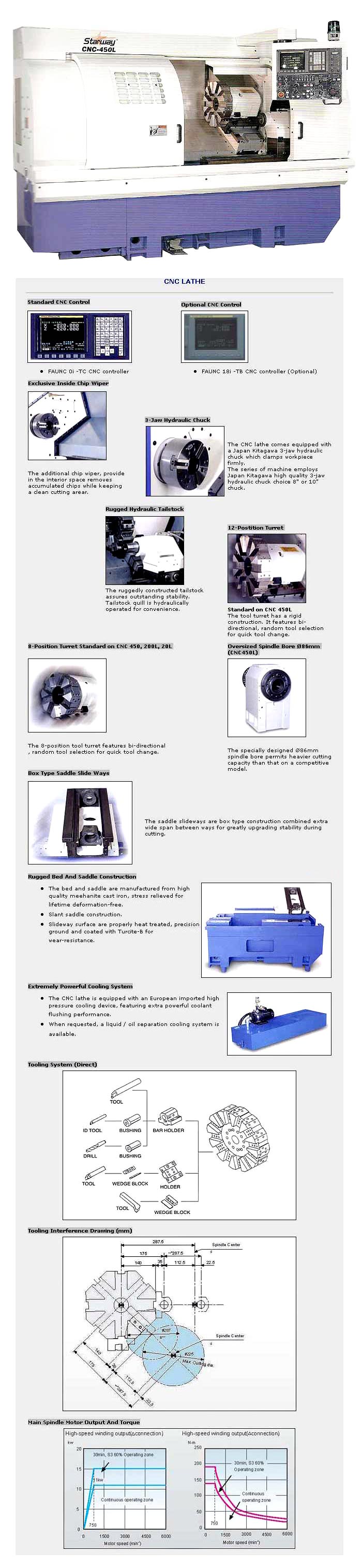

CNC Turning

Start CNC lathe.

CNC-450L, turning diameter is 330mm, turning length is 820mm, machine dimensions (L x W x H) is 3,400 x 2,300 x 1,900mm, the machine weight is 5,400kgs.

CNC Turning

Click here for details.

Features:

12-position turret is standard.
FANUC 0i-TC CNC control is standard.
FANUC 18i-TB CNC control is optional.
Meehanite cast iron on major structure.
Slant saddle construction.
Box type saddle slideways.
Spindle runs on precision double-row roller bearing and angular contact ball bearing.
Ø86mm spindle bore permits heavier cutting capacity.
Hydraulic tailstock.
Automatic lubrication for all slideways and ball screws.
Ø10"3-jaw hydraulic hollow chuck.
Standard accessories

FANUC 0i-TC CNC controller.
Ø10"3-jaw hydraulic hollow chuck with hard and soft jaw (each one set).
Ø8"3-jaw hydraulic hollow chuck with hard and soft jaw (each one set) (optional).
12-position turret.
8-position turret (optional).
High pressure cooling system.
Hydraulic tailstock.
Automatic lubrication system.
Tool box & tools.

Optional accessories

FANUC 18i-TB CNC controller.
Chip conveyor and bucket.
Parts catcher.
Tool presetter.
Auto power off.
Auto door.
Liquid / oil separator.
Bar feeder interface.
Bar feeder.

	Model	CNC-450L
Capacity	Max. swing diameter	580
Capacity	Max. turning diameter	330
Capacity	Max. turning length	820
Capacity	Distance between centers	940
Travel	X-axis	185
Travel	Z-axis	940
Spindle	Max. speed	3,000RPM
Spindle	Spindle nose	A2-8
Spindle	Spindle bearing ID	130
Spindle	Spindle bore	86
Spindle	Bar capacity	75
Turret	Type	12-station
Turret	OD tool	⌈ 25
Turret	ID tool	Ø32
Feed Rate	X-axis	15M / min (opt.: X = 20M / min)
Feed Rate	Z-axis	15M / min (opt.: Z = 24M / min)
Tailstock	Quill diameter	75
Tailstock	Quill taper	MT#4
Tailstock	Travel	900
Tailstock	Quill travel	80
Motor	Spindle motor	αP22 (11 / 15kw)
Motor	Feed drive motor	2.8kw (X-axis)
Motor	Feed drive motor	2.1kw (Z-axis)
Motor	Hydraulic motor	2HP
Motor	Coolant pump motor	1HP
Machine dimensions	Machine weight	5,400kgs
Machine dimensions	L x W x H	3,400 x 2,300 x 1,900mm

Main Product:
Vertical Machining Center, High Speed Vertical Machining Center, High Speed Cnc Engraving Machine, Cnc Lathe

Ordering information:

Minimum Order: Negotiable
TEL: 886-4-22770701
FAX: 886-4-22763615
E-mail: h2770701@ms57.hinet.net
