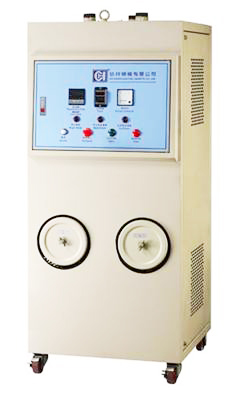

Dehumidifying
Product ID: 04
Engineering plastic feedstock's are often hygroscopic; especially those with strong hygroscopic: NYLON.PET.PC must be dehumidified by a desiccant machine before shaping, so that the hydrous rate of materials can be reduced to under 0.02%, so as to improve the problems below: low transparency, cells, silver streaks, flow marks, tensile strength, strength of impact resistance etc. Only a desiccant machine can ensure the stable quality of plastic injections.
- It applies honeycomb rotor (SSCR) to dehumidify powerfully, and the rotor has longevity with a life expectancy up to more than 10 years and can be washed in the water.
- Low energy resource and high efficiency, economizing 30~40% energy resource.
- The molecule sieve does not need to be replaced, produces no pollution, and ensures material quality.
- Dew point temperature is constant and products leave the factory with a testing of -45 °C.
- Easy operation, repair and maintenance.
- Exact quality control, few breakdowns.
- Low dew point temperature of -40°C ~ -50°C ~ and -50°C ~ -80°C models are supplied.
- Remark
- We reserve the right to change specifications without prior notice.
- CE
| Model | DE-5 | DE-10 | DE-18 | DE-30 | DE-40 | DE-70 | DE-100 |
|---|---|---|---|---|---|---|---|
| Air Flow Rate (CHM) | 50 | 100 | 180 | 300 | 400 | 700 | 1000 |
| Total (KW) | 2.7 | 4.6 | 6.9 | 9.5 | 13 | 21 | 26.5 |
| Size(mm) - W | 550 | 700 | 700 | 800 | 800 | 1200 | 1200 |
| Size(mm) - D | 550 | 700 | 700 | 800 | 800 | 1200 | 1200 |
| Size (mm) - H | 900 | 1500 | 1500 | 1800 | 1800 | 2200 | 2200 |
| Net Weight (KG) | 112 | 200 | 250 | 300 | 320 | 400 | 420 |
| Resin Type | Wet (%) | Tem. (°C) | Time (Hr) | Dehumidification (kg/hr) | |||
| ABS | 0.4 | 80 | 3-4 | 25, 57, 100, 165, 220, 391, 558 | |||
| ACETAL (POM) | 0.3 | 100 | 2 | 25, 61, 105, 180, 240, 419, 599 | |||
| ACRYLIC (POM) | 0.4 | 80 | 2-3 | 17, 59, 105, 174, 231, 405, 579 | |||
| LONOMER | ≤1 | 90 | 4-5 | 13, 41, 73, 120, 160, 282, 202 | |||
| PA6 | ≤1 | 75 | 4-6 | 15, 50, 87, 148, 197, 344, 490 | |||
| PA66 | ≤1 | 75 | 4-6 | 15, 50, 89, 148, 197, 344, 490 | |||
| PC | 0.3 | 120 | 3-4 | 17, 42, 75, 126, 168, 294, 420 | |||
| PU | 90 | 2-3 | 21, 42, 75, 126, 168, 294, 420 | ||||
| PBT | 0.25 | 130 | 3-4 | 17, 34, 60, 100, 134, 234, 334 | |||
| PE | 90 | 1 | 20 | 41, 73, 120, 160, 282, 402 | |||
| PET | 0.4 | 160 | 4-6 | 15, 34, 60, 100, 134, 234, 334 | |||
| PETG | 70 | 3-4 | 17 | 45, 80, 133, 177, 309, 442 | |||
| POLIYIMISE (PL) | 0.1 | 120 | 2 | 22, 45, 80, 133, 177, 309, 442 | |||
| PP | 90 | 1 | 25 | 45, 80, 133, 177, 309, 442 | |||
| PS (GP) | 0.1 | 80 | 1 | 25, 61, 105, 180, 240, 419, 599 | |||
| PS (HL) | 0.4 | 80 | 2 | 25, 59, 105, 174, 231, 405, 442 | |||
| PSE (POKYSULFONE) | 0.2 | 120 | 3-4 | 17, 45, 80, 133, 177, 309, 442 | |||
| PVC | 0.4 | 70 | 1 | 40, 75, 133, 221, 295, 515, 736 | |||
| SAN (AS) | 0.1 | 80 | 2 | 30, 61, 105, 180, 240, 419, 599 |
