Auto Super Co., LTD.
|
Product ID: KR

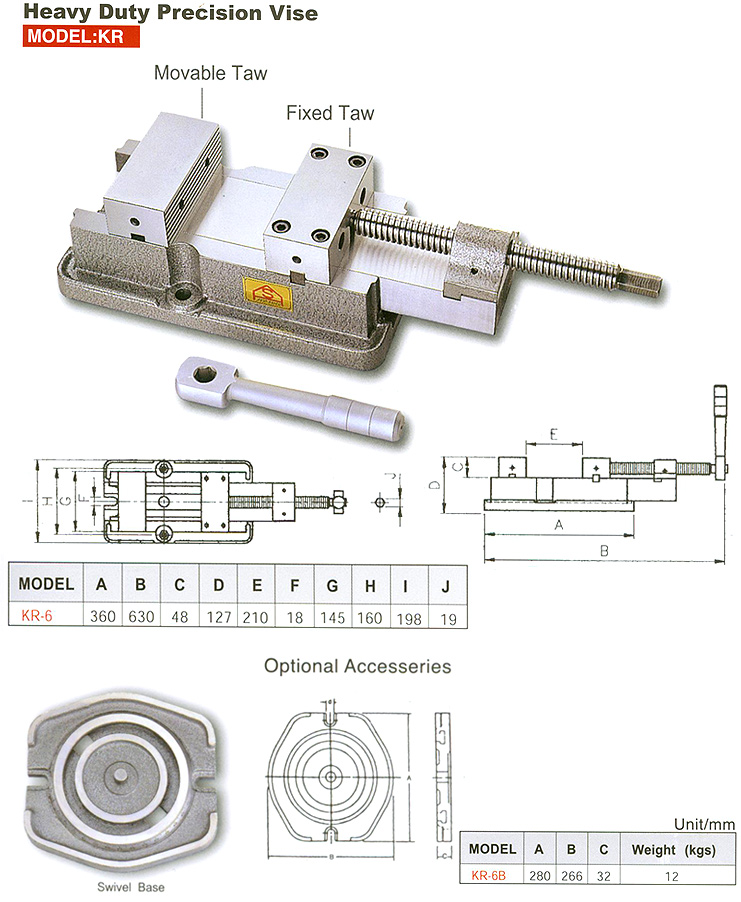

Heavy Duty Precision Vise
|
 Click here for details.
|
Specifications:
- Jaw width: 145 mm (6")
- Jaw opening: 210 mm (8-1/2")
- Jaw depth: 48 mm (1-7/8")
- Overall height: 127 mm (5")
- Net weigth(w/o swivel base): 40 kgs
Features:
- Stationary front jaw.
- The back jaw moves along with the slide reducing the tendency towards deflection preventing the workpieces from tilting.
- Jaws and body are steel construction.
- Hardend & ground on all sliding and contacting surface.
- Ideal for CNC applicatioin.
|
