Product ID: NEG-0832

Hydraulic Square Shearing Machine

The machine's features are low cutting angle, and inclined shear direction eliminate bowing and twist, produces accurate straight cuts and flat cutoffs; four edged ALLOY-TOOL steel blades ensure accuracy and lengthen blade life, and quick and easy.

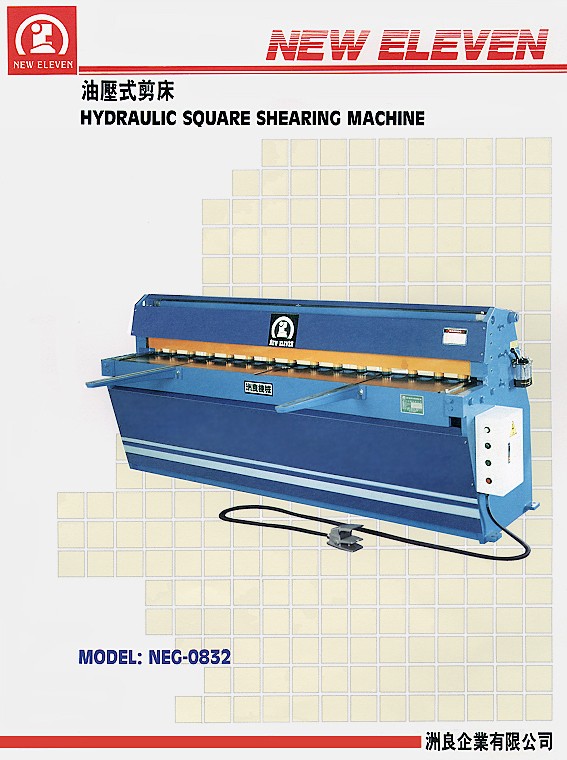

 Hydraulic Square Shearing Machine(NEG-0832)

Click here for details.

Specifications:
  • Front gauge range: 660 mm (26")
  • Back gauge range: 685 mm (27")
  • Strokes per minute: 40
  • Shear angle: 1 1/2°

Model\Specifications Capacity in mild steel thickness Capacity in mild steel length Motor capacity Approx. N.W. Approx. G.W. Packing size
NEG-0425 2.5mm(3/32") 1320mm, 50" 5 HP 1050 kgs, 2310 lbs 1200 kgs, 2640 lbs 1800 x 1020 x 1560mm, 71 x 40" x 61"
NEG-0525 2.5mm(3/32") 1530mm, 60" 5 HP 1300 kbs, 2860 lbs 1450 kgs, 3190 lbs 2100 x 1020 x 1560mm, 82 1/2" x 40" x 61"
NEG-0825 2.5mm(3/32") 2500mm, 100" 5 HP 2100 kgs, 4620 lbs 2500 kgs, 5500 lbs 3050 x 1020 x 1560mm, 120" x 40" x 61"
NEG-1025 2.5mm(3/32") 3100mm, 120" 5 HP 2650 kgs, 5830 lbs 3000 kgs, 6600 lbs 3600 x 1020 x 1560mm, 142" x 40" x 61"
NEG-0432 3.2mm(1/8") 1320mm, 52" 7 1/2 HP 1250 kgs, 2750 lbs 1400 kgs, 3080 lbs 1800 x 1050 x 1600mm, 71" x 41 3/8" x 63"
NEG-0532 3.2mm(1/8") 1530mm, 60" 7 1/2 HP 1400 kgs, 3080 lbs 1600 kgs, 3520 lbs 2100 x 1050 x 1600mm, 82 1/2" x 41 3/8" x 63"
NEG-0632 3.2mm(1/8") 2000mm, 80" 7 1/2 HP 1600 kgs, 3520 lbs 1820 kgs, 4004 lbs 2400 x 1050 x 1600mm, 94 1/2" x 41 3/8" x 63"
NEG-0832 3.2mm(1/8") 2500mm, 100" 7 1/2 HP 2300 kgs, 5060 lbs 2650 kgs, 5830 lbs 3050 x 1050 x 1600mm, 120" x 41 3/8" x 63"
NEG-1032 3.2mm(1/8") 3100mm, 120" 7 1/2 HP 2800 kgs, 6160 lbs 3136 kgs, 6899 lbs 3600 x 1050 x 1600mm, 142" x 41 3/8" x 63"
NEG-0445 4.5mm(3/16") 1320mm, 52" 10 HP 1500 kgs, 3300 lbs 1800 kgs, 3960 lbs 1800 x 1080 x 1750mm, 71" x 42 1/2" x 67"
NEG-0545 4.5mm(3/16") 1530mm, 60" 10 HP 2000 kgs, 4400 lbs 2300 kgs, 5060 lbs 2100 x 1080 x 1750mm, 82 1/2" x 42 1/2" x 67"
NEG-0645 4.5mm(3/16") 2000mm, 80" 10 HP 2850 kgs, 6270 lbs 3100 kgs, 6820 lbs 2400 x 1080 x 1750mm, 94 1/2" x 42 1/2" x 67"
NEG-0845 4.5mm (3/16") 2500mm, 100" 10 HP 3300 kgs, 7260 lbs 3650 kgs, 8030 lbs 3050 x 1250 x 1750mm, 120" x 49" x 67"
NEG-1045 4.5mm(3/16") 3100mm, 120" 10 HP 3800 kgs, 8360 lbs 4150 kgs, 9130 lbs 3600 x 1250 x 1750mm, 142" x 49" x 67"

Main Product:
Square Shears   Hydraulic Press Brake   Hydraulic Power Shears   Hydraulic Corners Hearing Machine   Hydraulic Guillotine Shears   Power Press

Ordering information:
  • Minimum Order: Negotiable
