POSU Enterprise Co., Ltd.
Print this page
Send an inquiry
Product
Product ID:
PC3010

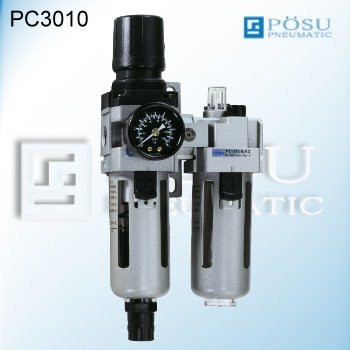

Pneumatic F.R.L Unit - Air Unit
AIR FILTER + REGULATOR +LUBRICATOR
Click here for details.
Specifications:
Stand unit contains semi-auto-drain function when operating pressure below 0.5 kgf/cm².
Features:
Branded Product
The body is made of die casting aluminum alloy.
Model
PC3010-02
PC3010-03
Component
PW3000-02, PL3000-02
PW3000-03, PL3000-03
Port size
G1/4
G3/8
Max. supply pressure
15 kgf/cm²(1.5MPa)
15 kgf/cm²(1.5MPa)
Max. operating pressure
9.9 kgf/cm²(0.99MPa)
9.9 kgf/cm²(0.99MPa)
Regulating range
0.5 ~ 8.5 kgf/cm²(0.05 ~ 0.85MPa)
0.5 ~ 8.5 kgf/cm²(0.05 ~ 0.85MPa)
Port size for pressure gauge
G1/8
G1/8
Max. Flow rate
1700 NL/min
1700 NL/min
Ambient and media temperature
-5 ~ 60 °C(No freezing)
-5 ~ 60°C(No freezing)
Filter element
Standard : 5µm Option : 2,10µm
Standard : 5µm Option : 2,10µm
Recommended oil
ISO VG32
ISO VG32
Bowl material
Polycarbonate
Polycarbonate
Weight
1 kgf
1 kgf
Main Product:
Air Shaft
Air Cylinder
Pneumatic Parts
Filter Regulator
Pneumatic Valve.
Ordering information:
Minimum Order:
Negotiable
