POSU Enterprise Co., Ltd.
|
Product ID: DI

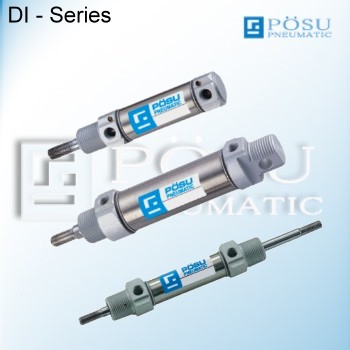

Miniature Air Cylinder
DI:Double acting
SRI:Single acting Spring return
SHI:Single acting Spring extrude
|
Miniature Air Cylinder
 Click here for details.
|
Specifications:
- Single Acting
- Bore Diameter (mm):Ø12, Ø16, Ø20, Ø25, Ø32, Ø40
- Standard stroke (mm):15, 25, 50
- Double Acting
- Bore Diameter (mm):Ø12, Ø16, Ø20, Ø25, Ø32, Ø40
- Standard stroke (mm):15, 25, 50, 75, 100, 125, 150, 200, 250, 300, 400, 500
- Stroke out of specification is also available.
- Please consult us if stroke out of specification.
Features:
- These series air cylinder applicable bore dia. from Ø12 ~ Ø40 mm meets with international interchangeable ISO 6432.
- With permanent magnetic ring(as a standard) .
- Cylinder cover cap are roller burnished onto the cylinder barrels so as to be pressure tight high concentricity good sealing and the cylinder provides longer life.
- With stainless steel #304 barrel material looks light and beauty never corroded and good thermo dispersion.
- All accessories available.
|
| Model |
DI |
DI |
DI |
| Acting Type |
Single and double acting |
Single and double acting |
Single and double acting |
| Bore Diameter (mm) |
12, 16 |
20, 25 |
32, 40 |
| Port Size |
M5 x 0.8 |
G1/8 |
G1/8 |
| Used fluid |
Air |
Air |
Air |
| The range of pressure(Double Acting) |
1 ~ 9.9 kgf/cm²(0.1 ~ 0.99MPa) |
1 ~ 9.9 kgf/cm²(0.1 ~ 0.99MPa) |
1 ~ 9.9 kgf/cm²(0.1 ~ 0.99MPa) |
| The range of pressure(Single Acting) |
1 ~ 9.9 kgf/cm²(0.1 ~ 0.99MPa) |
1 ~ 9.9 kgf/cm²(0.1 ~ 0.99MPa) |
1 ~ 9.9 kgf/cm²(0.1 ~ 0.99MPa) |
| Ambient Temperature |
-10 ~ +60°C (No Freezing) |
-10 ~ +60°C (No Freezing) |
-10 ~ +60°C (No Freezing) |
| Barrel material |
Stainless steel tube SUS 304 |
Stainless steel tube SUS 304 |
Stainless steel tube SUS 304 |
Main Product:
Air Shaft Air Cylinder Pneumatic Parts Filter Regulator Pneumatic Valve.
|
Ordering information:
- Minimum Order: Negotiable
|
