POSU Enterprise Co., Ltd.
|

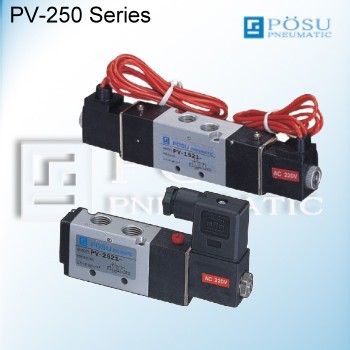

Product ID: PV-250
Solenoid Valve
*Pneumatic and spring return, manually control in first priority.
*European imported coil wire with low electricity consumption.
|
Electrical Solenoid Valve
 Click here for details.
|
|
Features:
|
| Model |
PV-2521 |
PV-2522 |
PV-2532.42 |
| Port thread size |
G1/4 |
G1/4 |
G1/4 |
| No. Of Port |
5 |
5 |
5 |
| No. Of Position |
2 |
2 |
3 |
| Used fluid |
Air |
Air |
Air |
| The range of pressure |
1.5 ~ 8 kgf/cm²(0.15 ~ 0.8MPa) |
1.5 ~ 8 kgf/cm²(0.15 ~ 0.8MPa) |
2 ~ 7 kgf/cm²(0.2 ~ 0.7MPa) |
| Max. operating pressure |
9.9 kgf/cm²(0.99MPa) |
9.9 kgf/cm²(0.99MPa) |
9.9 kgf/cm²(0.99MPa) |
| Effective section area |
18mm² |
18mm² |
12mm² |
| Ambient Temperature |
-10 ~ +60°C (No Freezing) |
-10 ~ +60°C (No Freezing) |
-10 ~ +60°C (No Freezing) |
| Allowance voltage range |
AC110V, 220V (50/60)Hz, DC24V |
AC110V, 220V (50/60)Hz, DC24V |
AC110V, 220V (50/60)Hz, DC24V |
| Power Consumption |
AC=8VA, DC=5W |
AC=8VA, DC=5W |
AC=8VA, DC=5W |
| Available Voltage Range |
±10% |
±10% |
±10% |
| Insulation Grade |
Class F |
Class F |
Class F |
| Weight |
210g |
310g |
420g |
Main Product:
Air Shaft, Air Cylinder, Pneumatic Parts, Filter Regulator, Pneumatic Valve.
|
