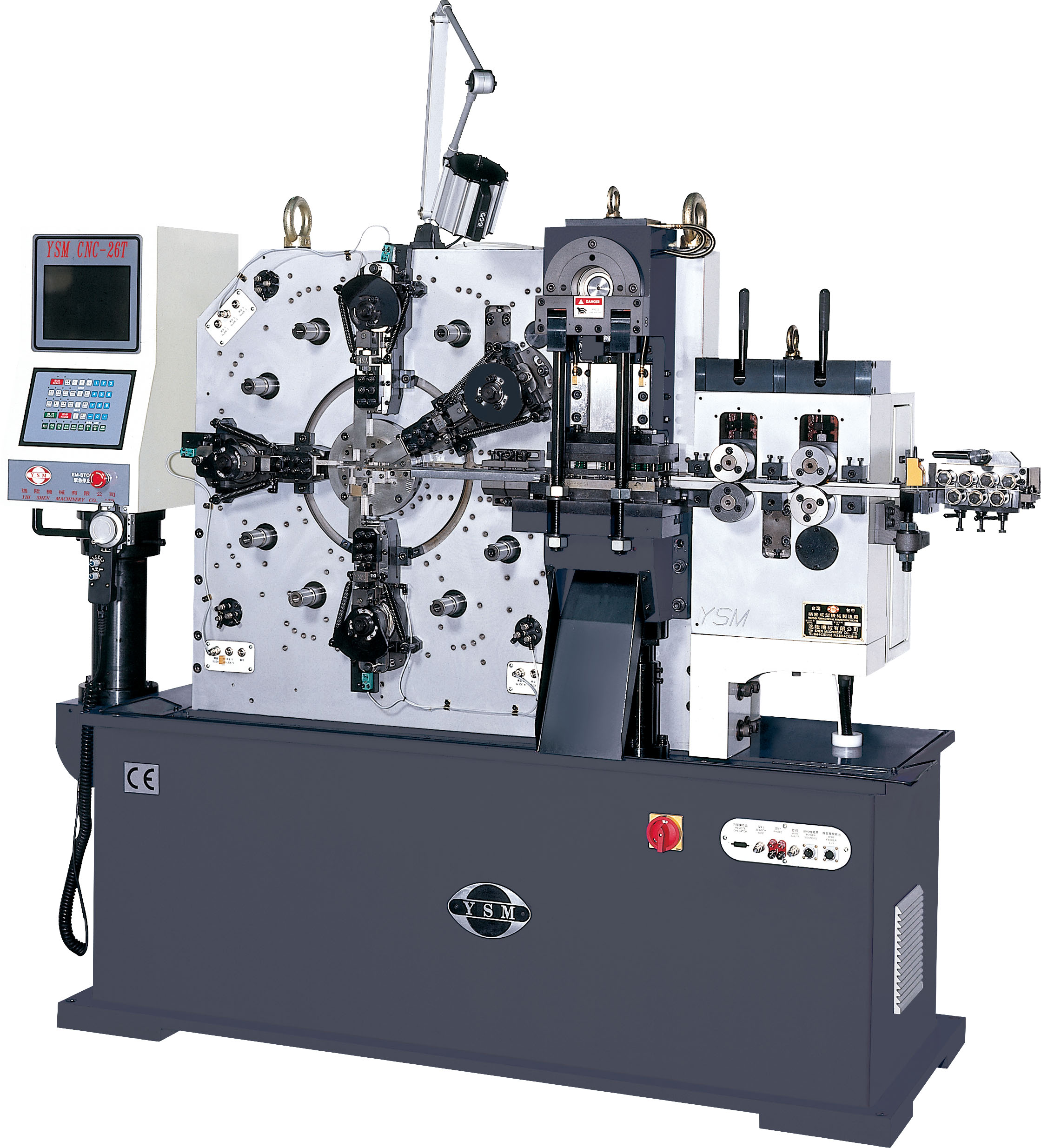

Automatic Forming Machines
Product ID: YSM CNC-26T
| MODEL | YSM-CNC-26T | |
|---|---|---|
| Processing Dimension | Wire Size (Wire Diameter) | 0.6-2.5mm |
| Width of Strip Wire | 30mm | |
| Thickness of Strip Wire | 0.3-1.2mm | |
| Hardness of wire | 80(CARBON) | |
| Length of wire Feeding | Unlimited | |
| Processing Speed | 200pcs/min | |
| Pressure | Punching Pressure | 10 TON |
| Slide Power | 1.5 TON | |
| Processing Type | Slide Type | 37mm |
| Press Processing Type | 12mm | |
| Power | CamAxis | 4.5HP (3.5KW) |
| Feeding Axis | 2.0HP (1.5KW) | |
| Press | 4.5HP (3.5KW) | |
| Coil Heart (option) | 0.5HP (400W) | |
| Machine | Appearance Size | 2250x780x1800m/m |
| Weight | 2500kg | |
Main Products:
We specialize in vary kind of CNC spring making machines, such as CNC spring former, CNC coiler, CNC wire strip former, garter spring coiler, strut(rope) hanger machine, furnace, spring measuring device.
