Product ID: ANYK-OAxxH-x-1-1RDC

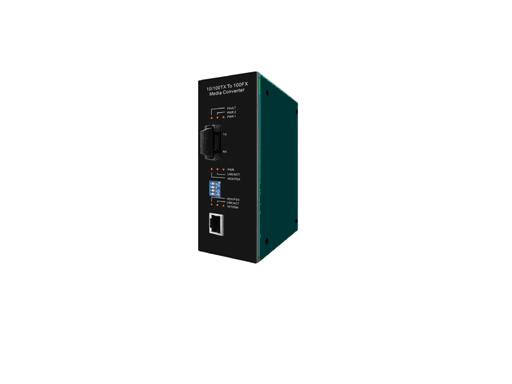

Industrial 10/100BaseTX to 100BaseFX Media Converter

Industrial 10/100BaseTX to 100BaseFX Media Converter is a costeffective solution for the converting 10/100Base-TX (Auto MDI/MDIX) to 100Base-FX cabling. It provides the two power inputs that can be connected simultaneously to the DC power sources. If one power input fails, the other one acts as a backup.Industrial 10/100BaseTX to 100BaseFX Media Converter also provides relay alarm outputs to warn when the port link failure, so the technician can respond quickly with appropriate emergency operation procedures.Also, there are DIP- switches to set the operation mode for relay alarm,Fiber ports, link loss forwarding function, and UTP operation mode.
Features
UTP to Fiber Media converter
Auto Negotiation Speed and Half/Full Duplex
Support 12 to 48VDC power inputs
TX port support Auto MDI/MDI-X
Relay alarm output for port link failure
IEEE 802.3x flow control support
Flow control on full-duplex
Back pressure on half-duplex
Built-in Link Lose Forwarding Technology
DIN-Rail or wall mountable
