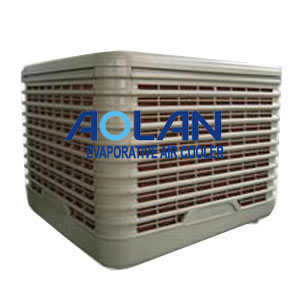

Evaporative air cooler
Evaporative air cooler
Model:AZL18-ZX10B
Characteristics
1.The casing is made of high strength weather ability polymers with smart look and excellent cost performance
2.Using specially designed axial fan,with large airflow,low noise,low energy consumption and wide applicability.
3.Using high quality aluminum housing motor,with good heat dissipation,high protection grade,waterproof and moisture-proof
4.Using automatic control of water system and opean type water distributor, so water can flow smoothly and distributor is not easy to block
5.Using highly efficient cooling pads with large evaporation capacity,good cooling efficiency and easy cleaning
Specification AZL18-ZX10B
Fan Capacity (m3/h) 18000
Full Pressure (Pa) 190
Voltage/Frequency (V/Hz) 220/50
Rated Currency (A) 5.6
Fan Type Axial
Fan Speeds 1-phase,various-speeds
Noise (dBA) ≤76
Fan Diameter Φ600
Water Consumption (L/h) 15-25
Water Capacity (L) ≤40
Application Area (m2) 100-150
Drive Distance (m) 25-30
Auto Cleaning approval
Water Lack Protection approval
Dimension (mm) 1170*1170*960
Net Weight (kg) 84
Operation Weight (kg) 124
- ISO9001:2000
- CE
- SASO
