Product ID: 200805001

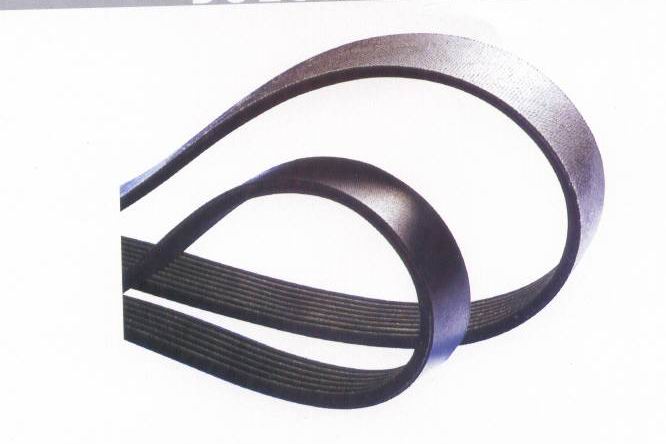

aotumotive V-Ribbed Belt

The multi-wedge rubber belt combines the merits of both V and flat belts,i.e, softness and tenacity of flat belts as well as compactness and high efficiency of V belts.

• PH
• PB 1.60H 3.00 h 1.33 RI 0.15 R2 0.30 WEDGE 40
• PJ
• PB 2.34 H 3.35 h 2.00 RI 0.20 R2 0.40 WEDGE 40
• PK
• PB 3.56 H 5.50 h 2.30 RI 0.30 R2 0.60 WEDGE 40
• PL
• PB 4.70 H 9.00 h 4.89 RI 0.40 R2 0.40WEDGE 40
• PM
• PB9.40 H 17.00 h 10.35 RI 0.75 R2 0.75 WEDGE 40

Features:

• High transmission power
• 30% higher transmission power than that with ordinary V belts given the same space occupation
• Compact structure of transmission
• 25% smaller space occupation than that of transimmion unit with ordinary V belt for the same transferred power.
• Thin, soft belt
• Applicable to transmissions with small-diameter belt pulleeys and transmission in high speed (up to 40m/s)
• Low vibration
• Low vibration,low heat generation and stable operation.
• Heat,oil wear resistant;
• Heat,oil wear resistant; low elongation rate;long life utility.

• Minimum Order: 1000pcs
