Acrylic Forming Machine

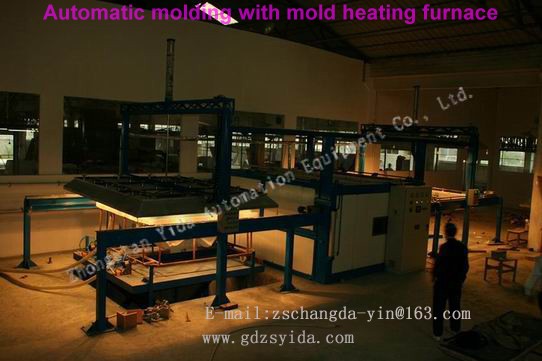

Acrylic Forming Machine/Bath Machine/Automatic molding with mold heating furnace
Product ID: 2
Send Inquiry
The technique requests:
1. Maximum size: 2440×107×650 mm, the length or the width could be more larger.
2. Use material:Acrylic board.
3. The Maximum use temperature:250 Degrees Celsius.
4. The normal temperature rises to 200 Degrees Celsius take less than 40 minutes,The time for roast plank less than eight minutes after getting to the temperature you want.
5. Oven temperature margin:±5 Degrees Celsius.
6. Quick plywood cylinder, strength for plywood: each rapid clip to hold dint to 150 kg, there are four quickly clips each meter.
7. The overall power /Voltage of forming stove: 60kw/380V, 120×240mm ceramic heating board low-power, Each ceramic temperature heat is adjustable.
8. The ascends and descends travel of the molding tool:1000mm, CNC adjustable.
9. The strength born by molding tool working panel lifter: while being a little bit lowest > 2 T, crest plank position > 4 T.
10. While the working panel lifter ascends and descends, the high deviation in the process: ±3 mm.
