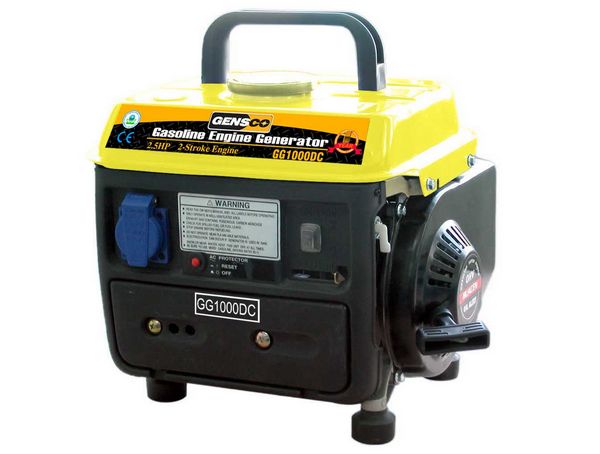

Generating TG1000DC
Frequency 50 HZ 60 HZ
Max. AC output 0.75 KVA 0.85 KVA
Rated AC output 0.65 KVA 0.75KVA
Phase Single phase
Insulation F
Rated AC voltage 115/230.220.230.240/110.120.110/220.120/240
Engine
Model 1E45.
Engine Type Air-cooled,2stroke,OHV,singlinder
Max power output 2.0 HP
Displacement 63cc
Compressin ratio 7.0: 1
Engine speed 3000rpm 3600rpm
Starting system Recoil
Fuel tank capacity 4.2 L
Noise level(at 7m) 57db(A)
N.W/G.W 22/ 24KG
Packing Dimension 385x315x330 mm
Frequency 50 HZ 60 HZ
Max. AC output 0.75 KVA 0.85 KVA
Rated AC output 0.65 KVA 0.75KVA
Phase Single phase
Insulation F
Rated AC voltage 115/230.220.230.240/110.120.110/220.120/240
Engine
Model 1E45.
Engine Type Air-cooled,2stroke,OHV,singlinder
Max power output 2.0 HP
Displacement 63cc
Compressin ratio 7.0: 1
Engine speed 3000rpm 3600rpm
Starting system Recoil
Fuel tank capacity 4.2 L
Noise level(at 7m) 57db(A)
N.W/G.W 22/ 24KG
Packing Dimension 385x315x330 mm
