VGA extender
Product ID: HT1301/1302/1303

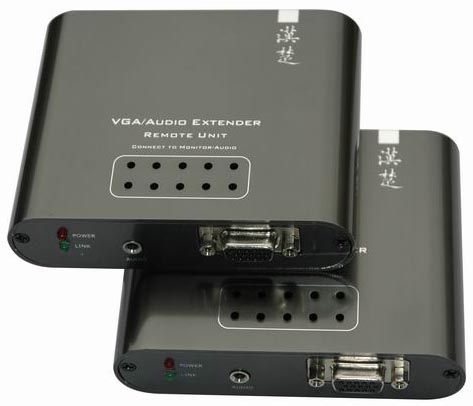

VGA video and audio Extender composes a local transmitter and a remote receiver, which are connect by standard Cat 5 cables. The distance of both units can be extended up to 150/300/500m.It's ideal for any locations which need remote display VGA video and audio signal. Such as :Large screen display ,long-distance image monitoring display ,multimedia information issue system.
- QTY
- Transmitter x 1/Receiver x 1
- Dimension
- Dimensions (L x W x H) : 80mm X 60mm X 22mm
- Index I
- Cable: CAT5，CAT5e，CAT6，CAT6e etc.
- Differential gain: < 0.05%
- Differential phase: < 0.05o
- SNR(weighting ): 90dB
- Maximum bandwidth: 350M
- Index II
- Input impedance: VGA video 75Ω, VGA synchronism 4.7KΩ,
- Input level : VGA video 0.7Vpp , VGA synchronism TTL
- Working temperature : -25℃ ～ +75℃
- Index III
- Relative humidity: 0～ 95%（Non-condensing）
- Maximum resolution : 640X48 to 1920X1440
- Basic function index
- It can extend VGA video and audio signal up to 150/300/500metres.
- Provides a VGA interface on the transmitter for using locally
- The cable suitable
- Use a piece of UTP cable (CAT5,CAT5E,CAT6) to connect local and remote units, and the cost is low,
- Supports VGA video and audio extending, and bandwidth as high as 350m
- Tech Supports
- Supports video resolution between 640X480 to 1920X1440, and perfectly supports high-clear TV resolution
- Support all computer operating system.
- No need a driver and easy installation
- Function Advantages
- Transmit audio and VGA video signal without delay.
- perfect anti-jamming and satisfy any kinds of harsh environment Certificate:
- CE/Rohs
