The preceding process of the machine is combined opening and scotching machine and the flowing process is drawing frame. The machine is mainly used for the processing of cotton (chemical fiber) laps and cotton (chemical fiber) layers. The machine combs the curly cotton (chemical) lumps moving from the preceding process or feeding hopper to straight single fibers. Mean while the impurities will be removed. Then it spins them into standard slivers and stored in a sliver can for next process.
Features

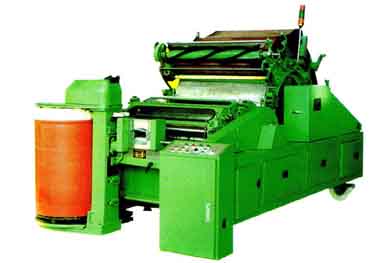

- Fiber Carding Machine A186F
- Model Right-handed (standing in front of the machine, facing to the doffer.
- Breadth 1020mm
- Applicable lap Maximum diameter ¢550mm; Width 980mm
- Cylinder working diameter ¢1289mm
- Cylinder speed (selectable) 330rpm (for chemical fiber),360rpm (for cotton)
- Doffer working diameter ¢707mm
- Doffer speed 19-35.7rpm
- Total draft 67.3-120.2
- Motor Main motor:3.3kw,Doffer motor:0.75/0.37kw, Suction motor Model F: 0.06kw
- Floor area (L x W) 3684 x 2009.5mm
- Net weight 4500kg
- Capacity 15-30kg/h
Certificate
- CE CO
