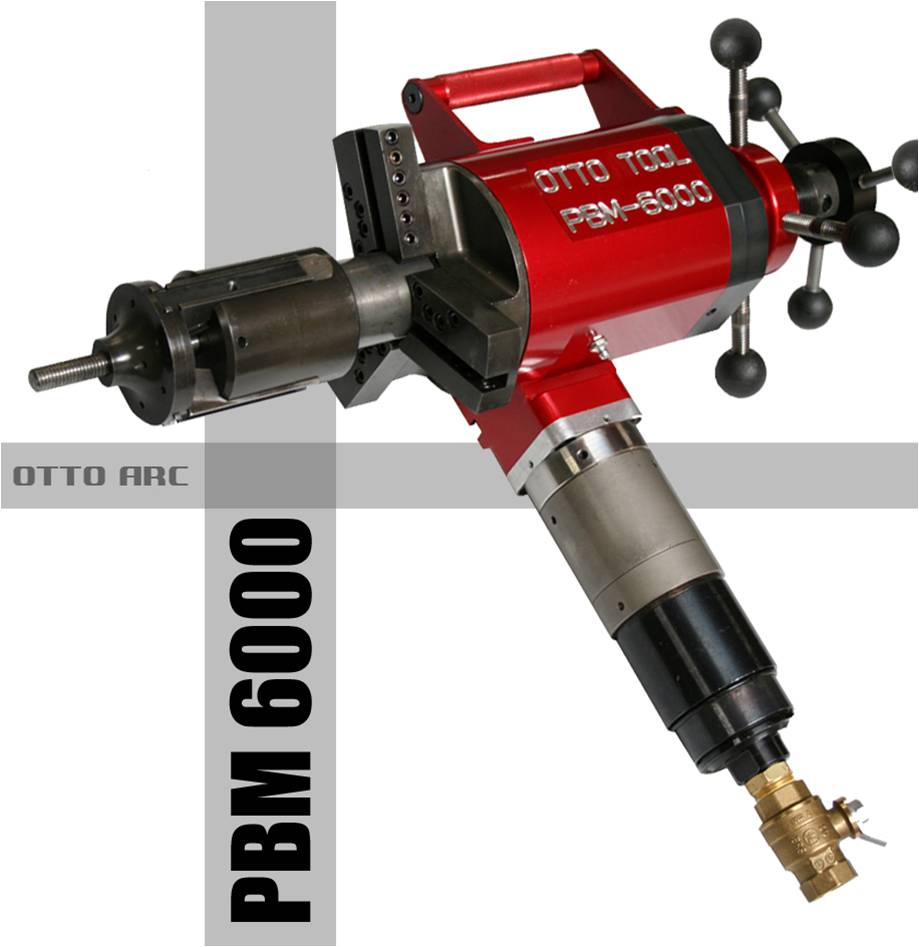

The PBM-6000 machine comes with a torque accepting mandrel, built with a worm gear drive unit for extra torque to handle extra thick pipe walls.
This machine can bevel, face, and counter-bore 1.25" wall - worry free from damaging the gears
PERFORMANCE:
• Lock in mandrel blades (no springs to lose)
• Adjustable keyway on machine and mandrel(eliminates backlash and chatter)
• 2 hp pneumatic motor
• 52 lbs. approximate working weight
• Hardened mandrel 45 Rc.(less chance of gouging with metal chips)
• Three slots to do beveling, facing, deburring or counter-boring
• Single mandrel with mandrel blades to cover size ranges
• Size range 2” to 6” Pipe (50.8 mm - 152.4 mm)
• Max wall thickness to1.25"
• Air Power requirements: 70 cfm at 90 psi.
This machine can bevel, face, and counter-bore 1.25" wall - worry free from damaging the gears
PERFORMANCE:
• Lock in mandrel blades (no springs to lose)
• Adjustable keyway on machine and mandrel(eliminates backlash and chatter)
• 2 hp pneumatic motor
• 52 lbs. approximate working weight
• Hardened mandrel 45 Rc.(less chance of gouging with metal chips)
• Three slots to do beveling, facing, deburring or counter-boring
• Single mandrel with mandrel blades to cover size ranges
• Size range 2” to 6” Pipe (50.8 mm - 152.4 mm)
• Max wall thickness to1.25"
• Air Power requirements: 70 cfm at 90 psi.
