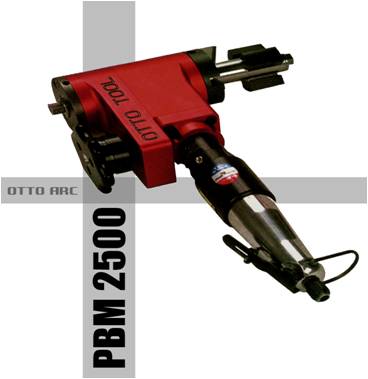

The PBM-2500 machine is light weight, just 13 lbs. and is designed to bevel boiler tubes. The tool bits are held in by our optional wedge lock system.
The torque accepting mandrel with lock in blades (no springs) easily stops any pieces from dropping down into the boiler tube. Our gear drive unit has spiral bevel gears for better torque (more teeth engagement, compared
to standard straight gears that other competitors use).
PERFORMANCE:
• Lock in mandrel blades (no springs to lose)
• Adjustable keyway on machine and mandrel
(eliminates backlash and chatter)
• .75 hp pneumatic motor
• 13 lbs. approximate working weight
• Hardened mandrel 55 Rc.(less chance of gouging with metal chips)
• Tool bit is held in by our wedge lock system(keeps the tool bit locked in the cutter head to ensure chatter free bevels)
• Single mandrel with mandrel blades to cover size ranges
TECHNICAL SPECS:
• Size range 0.50” to 2.5” (12.7 mm - 63.5 mm)
• Max wall thickness to 0.50"
• Air Power requirements: 55 cfm at 90 psi.
The torque accepting mandrel with lock in blades (no springs) easily stops any pieces from dropping down into the boiler tube. Our gear drive unit has spiral bevel gears for better torque (more teeth engagement, compared
to standard straight gears that other competitors use).
PERFORMANCE:
• Lock in mandrel blades (no springs to lose)
• Adjustable keyway on machine and mandrel
(eliminates backlash and chatter)
• .75 hp pneumatic motor
• 13 lbs. approximate working weight
• Hardened mandrel 55 Rc.(less chance of gouging with metal chips)
• Tool bit is held in by our wedge lock system(keeps the tool bit locked in the cutter head to ensure chatter free bevels)
• Single mandrel with mandrel blades to cover size ranges
TECHNICAL SPECS:
• Size range 0.50” to 2.5” (12.7 mm - 63.5 mm)
• Max wall thickness to 0.50"
• Air Power requirements: 55 cfm at 90 psi.
