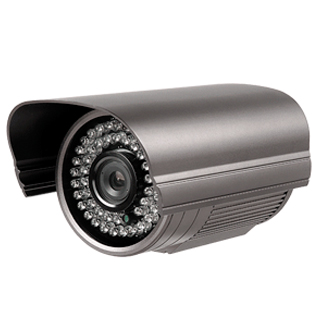

50 Meter IR Camera
Image Sensor: 1/3"SONY CCD
Resolution: 420/480/520TVL Option
Total Pixels (HxV): NTSC : 510(H) x 492(V) PAL : 500(H) x 582(V) / NTSC : 768(H) x 494(V) PAL : 752(H) x 582(V) Option
Scanning Frequency: NTSC : 15.734 KHz(H), 59.94 Hz(V) PAL : 15.625 KHz(H), 50 Hz(V)
Scanning System: 2:1 Interlace
S/N Ratio: More than 48/52dB (AGC Off) Option
Min. Illumination: 0.003/0.5/0.8 LUX Option
Sync.System: Synchronization
Electronic Shutter: NTSC : 1/60 sec / PAL : 1/50 sec
Gamma: γ = 0.45
Video Output: 1.0 Vp-p Composite (75?)
AGC: Auto
IR LED: 60 unit 850mm up to 50 meter
IR LED Operation: On (1 Lux) / Off (3 Lux)
LED life: More than 10,000 Hours
Power Requirement: DC12V (±10%)
Power Consumption: IR on: 800mA, IR off: 100mA
Cable: BNC/DC JACK
Operation Temp: -10℃～+50℃ RH95% Max
Storage Tempe: -20℃～+60℃ RH95% Max
Lens: 8mm CS Mount Lens
Color: Black/Siliver/Dark Grey
Dimensions (mm): 185x100x95 mm
Weight: Approx. 750 g
- IR camera
- IR LED: 60 unit 850mm up to 50 meter
- IR LED Operation: On (1 Lux) / Off (3 Lux)
- water proof camera
- weather resistance
- Weather Resistance IP66 Case
- night vision camera
- Max 50M Distances Visibility at Night
- night vision camera
- Key Features:
- 1/3" Color CCD
- High Performance 60 units IR LEDs
- Max 50M Distances Visibility at Night
- IR Reflection Free with Special Front Glass
- Fixed CS Mount Lens
- IR auto-open by CDS control in low lux
- Suitable For Outdoor
- Low power consumption
- Weather Resistance IP66 Case Certificate:
- FCC
- CE
