Description : It is used as an ionic additive for copper plating in sulfate liquor as well as copper plating in acid solution for superior brightness at wide range of temperatures. It is mainly applicated in some fields requiring high-grade electroplating like science research, chemical reagent and IT industry. Copper sulphate of high purity can be used to effectively prevent the plating from varied problems since it could maximally avoid various metal contamination and organic impurities in plating bath in circuit wafer manufacturing.

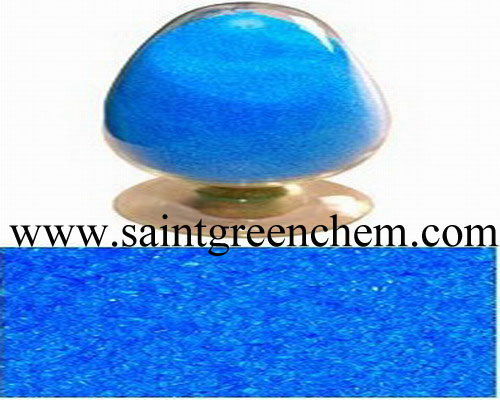

Features : Blue crystalline form, odourless, density:2.284g/cm3, dissolved in water and low concentration of acetic acid. It has a weak acid solution. It will effloresce slowly when exposed in dry air, and the surface will become white powder. It will lose four crystal water when heated to 110℃, and will be changed into anhydrous cupric sulfate of white color with water absorption when the temperature reaches to 150℃ or above.
Specification : Items Guaranteed Specification Typical Analysis
CuSO4. 5H2O 99%Min 99.36%
Cu 25.2% 25.3%
Water insoluble 0.005% Max. 0.002%
Ph value 3.5 ?4.5 3.95
Cl 10 ppm Max. 5 ppm
Ni 5 ppm Max. 2 ppm
Cd 3 ppm Max. 2 ppm
Pb 10 ppm Max. 5 ppm
Fe 10 ppm Max. 7 ppm
Ca 5 ppm Max. 3 ppm
Zn 10 ppm Max. 5 ppm
Co 10 ppm Max. 1 ppm
As 5 ppm Max. null
Features : Blue crystalline form, odourless, density:2.284g/cm3, dissolved in water and low concentration of acetic acid. It has a weak acid solution. It will effloresce slowly when exposed in dry air, and the surface will become white powder. It will lose four crystal water when heated to 110℃, and will be changed into anhydrous cupric sulfate of white color with water absorption when the temperature reaches to 150℃ or above.
Specification : Items Guaranteed Specification Typical Analysis
CuSO4. 5H2O 99%Min 99.36%
Cu 25.2% 25.3%
Water insoluble 0.005% Max. 0.002%
Ph value 3.5 ?4.5 3.95
Cl 10 ppm Max. 5 ppm
Ni 5 ppm Max. 2 ppm
Cd 3 ppm Max. 2 ppm
Pb 10 ppm Max. 5 ppm
Fe 10 ppm Max. 7 ppm
Ca 5 ppm Max. 3 ppm
Zn 10 ppm Max. 5 ppm
Co 10 ppm Max. 1 ppm
As 5 ppm Max. null
