TB STANDARD POLES
Product ID: TB POLES

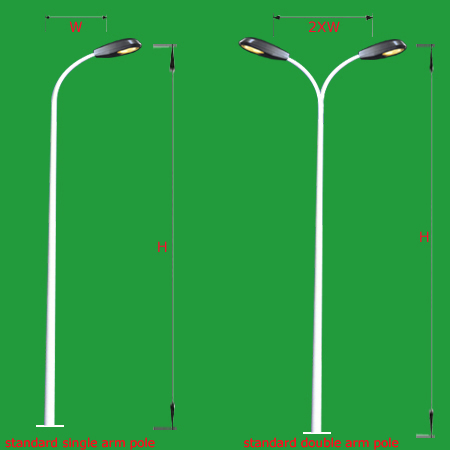

Features of standard street lighting pole:
W=0.5m~3m
H=4m~12m
Steel Materials: all steel plates comform to ASTM A36 or any equivalent (Q235, SS400).
Welding: Welding complies with CSA, AWS or Australian/New Zealand standard,BS EN 40-5:2004. All sharp edges and burrs are removed.
Finish: Hot-dip galvanization to ASTM A123-01 or be color powder coating after galvanization.
All poles could be tapered octagonal or conical, depending on client's choice.
Design parameters:
Design wind speed 200km/h, 150km/h or 120km/h.
Uniform exposure
- Pole Height
- 3m-12m
- Pole Arm
- 200mm-3000mm
- Baseplate
- 12mm-20mm
- Foundation Bolts
- M16-M30, Length 500mm-2000mm
- Fuse Box
- IP43
- Materials
- A36, SS400,Q235,Q345,GR65
- Welding
- AWS, CSA, AUSTRALIAN/NEW ZEALAND, BS EN 40-5:2004
- Finish
- Hot dip galvanized or polyester powder coating after galvanization
- Test
- NDT
- Packaging
- standard or customer's requirements
- ISO
- CE
Main Products:
steel poles, lighting fixtures, solar lighting
