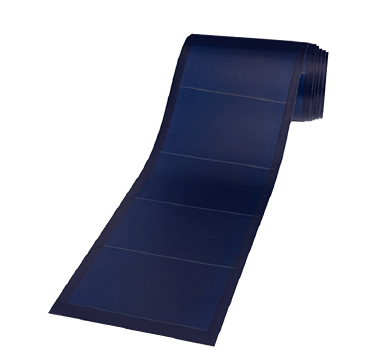

Flexible solar panel 68W
Product ID: UI PVL-68
*Rated Power (Pmax): 68Wp;
*High Temperature and Low Light Performance
*5 Years Limited product warranty
*Limited Power Output Warranty:
92% at 10 years. 84% at 20 years, 80% at 25 years ( of minimum power)
* Quick-Connect Terminals and Adhesive Backing
*Qualifications and Safety: UL1703, IEC61646/61730, TUV.
- Specs
- 1) Peak power (Wp): 68W
- 2) Module efficiency: 8.49%
- 3) Max. Power voltage (Vmp): 30.0V
- 4) Max. Power current (Imp): 4.1A
- 5) Open circuit voltage (Voc): 42V
- 6) Short circuit current (Isc): 5.1A
- 7) Dimensions: 2849*394*4mm(216"*15.5"*0.2")
- 8) Weight: 3.9KG (8.7 lbs)
- 9) 11 triple junction amorphous silicon solar cells 356*239mm
- 10) Warranty: 92% at 10 years, 84% at 20 years, 80% at 25 years (of the minimum power)
