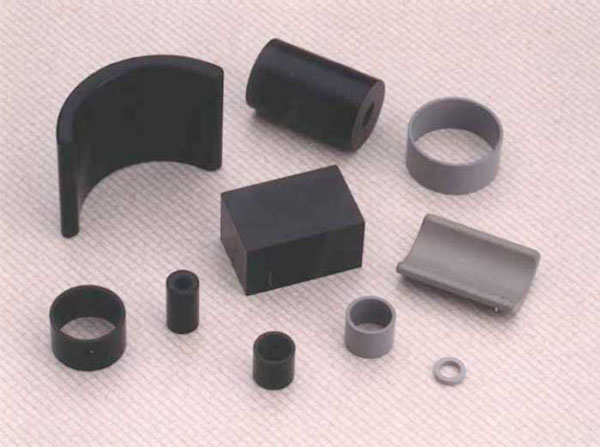

Bonded Magnet
Product ID: 03
- In a Variety of Designs and Easy to be shaped
- Widely used in the communication and computer products such as cellular phone and CD ROM
- Can be magnetized in multiples
| Property | Grade | N6-MQ | N8-MQ | N9-MQ | N10-MQ | N12-MQ |
|---|---|---|---|---|---|---|
| Br / Residual flux density | MT | 520~600 | 590~620 | 620~650 | 650~690 | 700~800 |
| N / A | KGs | 5.2~6.0 | 5.9~6.2 | 6.2~6.5 | 6.5~6.9 | 7.0~8.0 |
| bHc / Coercive force | KA/m | 304~360 | 390~415 | 415~440 | 440~460 | 448~480 |
| N / A | KOe | 3.8~4.5 | 4.9~5.2 | 5.2~5.5 | 5.5~5.8 | 5.6~6.0 |
| iHc / Intrinsic Coercive force | KA/m | 640~800 | 720~960 | 720~960 | 640~960 | 720~960 |
| N / A | KOe | 8.0~10.0 | 9.0~12.0 | 9.0~12.0 | 8.0~12.0 | 9.0~12.0 |
| BHmax / Max. energy product | Kj/m^3 | 40~56 | 56~64 | 64~72 | 72~80 | 80~96 |
| N / A | MGOe | 5~7 | 7.0~8.0 | 8.0~9.0 | 9.0~10.0 | 10.0~12.0 |
| Working Temperature | Celsius |
