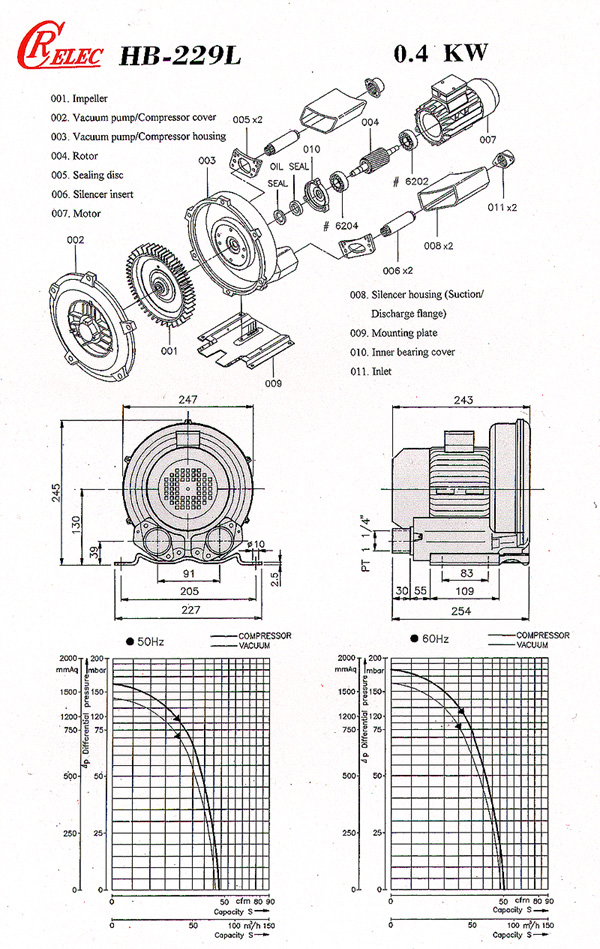

Side Channel Blower
Product ID: HB-229L
INSTRUCTION FOR OPERATION: Ruey Chaang blowers are designed for handling air, other non-explosive gases and gasair mixtures completely oil-free at medium temperatures up to 40 c. The same blower can be used either as a vacuum pump or as a compressors. In order to avoid an overload of the motor, blowers with limited performance curves in the high-pressure range should be fitted-depending on the application-with the relative pressure relief values. Pressure relief valves can be mounted directly on the outlet, vacuum relief valves directly on the inlet of the blower.
- Easy to Installable mounted in any position, horizontally or vertically.
- High Reliability
- Low noise level
- Mode of operation
- No oily odors
- High efficiency
- Motor:
- Ruey Chaang blowers are driven by 2-pole TEFC motor with (IP54) protection and class F insulation.
- Shaft Seal:
- Maintenance-Free Shaft seal separated the motor from the impeller.
- Casing:
- The casing from the impeller and the motor are individually cast.
- Silencer: The inlet and outlet are constructed as silencers.
- Selection Example:
- If the suction capacity and vacuum pressure are known (from measurement of experience) then the blower can be chosen using the selection table.
- The selected pump type is for 220/380V. If a different motor voltage is required, please specify for production.
