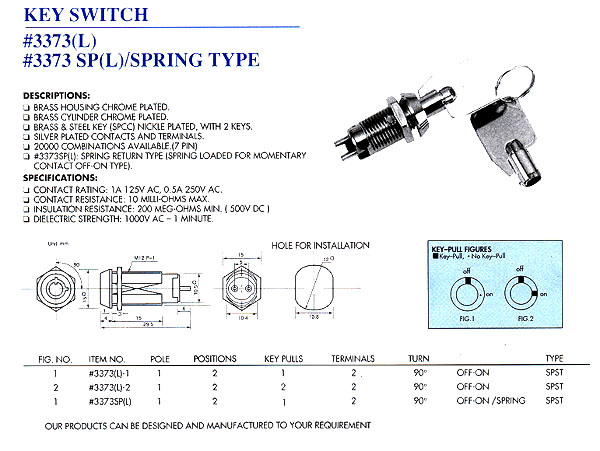

Key Switch
Product ID: #3373(L), #3373SP(L)/Spring Type
- Contact rating: 1A 125V AC, 0.5A 250V AC
- Contact resistance: 10 milli-ohms max
- Insulation resistance: 200 meg-ohms min.(500V DC)
- Dielectric strength: 1000V AC-1 minute
- Brass housing chrome plated
- Brass cylinder chrome plated
- Brass & Steel Key(SPCC) nickle plated, with 2 keys
- Silver plated contacts and terminals
- 20000 combinations available.(7PIN)
- #3373SP(L): Spring return type (spring loaded for momentary contact OFF-ON TYPE)
| FIG. NO. | ITEM NO. | POLE | POSITIONS | KEY PULLS | TERMINALS | TURN | N/A | TYPE |
|---|---|---|---|---|---|---|---|---|
| 1 | #3373(L)-1 | 1 | 2 | 1 | 2 | 90deg | OFF-ON | SPST |
| 2 | #3373(L)-2 | 1 | 2 | 2 | 2 | 90deg | OFF-ON | SPST |
| 1 | #3373SP(L) | 1 | 2 | 1 | 2 | 90deg | OFF-ON/SPRING | SPST |
