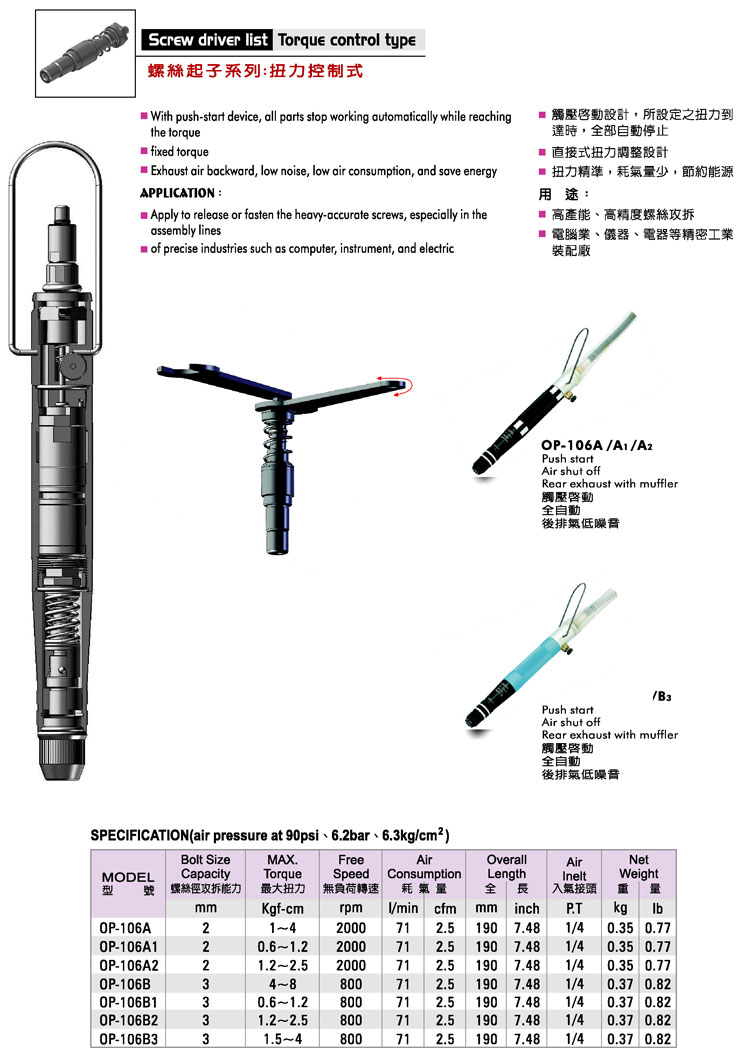

Torque Control Type
Product ID: OP-106A /A1 /A2, OP-106B /B1 /B2 /B3
(1) With push-start device, all parts stop working automatically while reaching the torque.
(2) Fixed torque.
(3) Exhaust air backward, low noise, low air consumption, and save energy.
Application:
(1) Apply to release or fasten the heavy-accurate screws, especially in the assembly lines.
(2) Of precise industries such as computer, instrument, and electric.
- Air pressure at 90psi, 6.2bar, 6.3kg/cm2
- OP-106A /A1 /A2
- Push start
- Air shut off
- Rear exhaust with muffler
- OP-106B /B1 /B2 /B3
- Push start
- Air shut off
- Rear exhaust with muffler
| MODEL | Bolt Size Capacity | MAX. Torque | Free Speed | Air Consumption | Air Consumption | Overall Length | Overall Length | Air Inelt | Net Weight | Net Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | Kgf-cm | rpm | 1/min | cfm | mm | inch | P.T | kg | lb | |
| OP-106A | 2 | 1~4 | 2000 | 71 | 2.5 | 190 | 7.48 | 1/4 | 0.35 | 0.77 |
| OP-106A1 | 2 | 0.6~1.2 | 2000 | 71 | 2.5 | 190 | 7.48 | 1/4 | 0.35 | 0.77 |
| OP-106A2 | 2 | 1.2~2.5 | 2000 | 71 | 2.5 | 190 | 7.48 | 1/4 | 0.35 | 0.77 |
| OP-106B | 3 | 4~8 | 800 | 71 | 2.5 | 190 | 7.48 | 1/4 | 0.37 | 0.82 |
| OP-106B1 | 3 | 0.6~1.2 | 800 | 71 | 2.5 | 190 | 7.48 | 1/4 | 0.37 | 0.82 |
| OP-106B2 | 3 | 1.2~2.5 | 800 | 71 | 2.5 | 190 | 7.48 | 1/4 | 0.37 | 0.82 |
| OP-106B3 | 3 | 1.5~4 | 800 | 71 | 2.5 | 190 | 7.48 | 1/4 | 0.37 | 0.82 |
Main Products:
Air Screw Driver, Air Drill Tool, Pneumatic Tool, Air Wrench, Air Sander, Air Nailer, Air Stapler, Tool Set, Air Tool, Driver Socket and Bit
