Product ID: 12

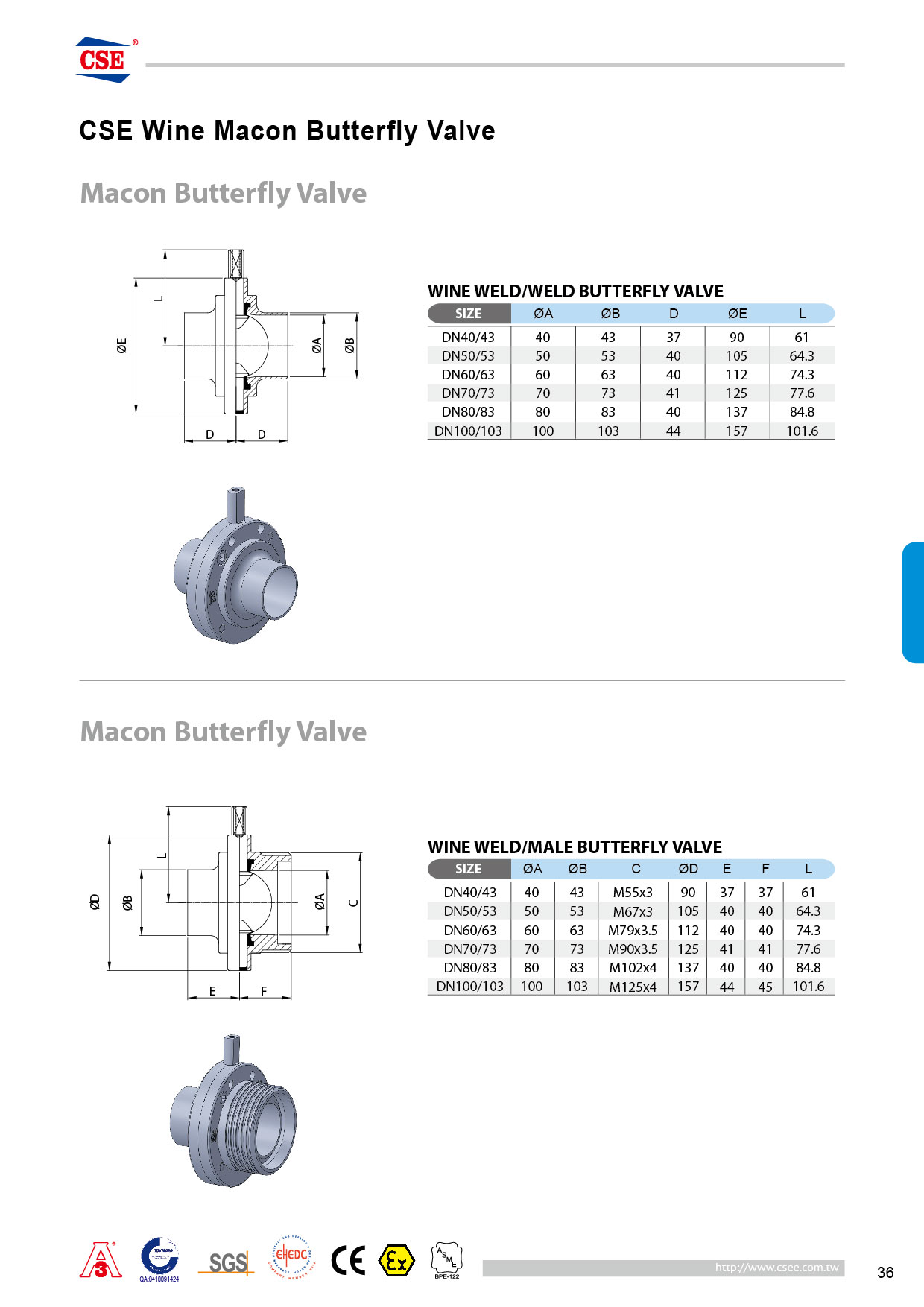

Wine Butterfly Valve Weld End / Flang End / Male End

Our Wine Butterfly valve body could be offered with Weld end, Male end, female end, and Flang end. The different handle of 4 position, 12 position and other style that you inquired or actuator for your widely used.
The Butterfly valve body and disk are all made from full CNC machined, high polished that demanded with the high quality in the developed country around the world.
All of the products have been 100% press tested before shipping.
It is necessary you specify at the time of order heat numbers and MTR's are required. Material Test Reports (MTR's) are available to document all heat number.

Click here for details.

• Body:
• Made by forged material.
• Fully precision machined by CNC machine.
• Connection: Weld end Male end, Female end, and Flange end are available from DN43, DN53, DN63, DN73, DN83, DN103.
• Disk:
• Made by forged material.
• Fully precision machined by CNC machine.
• Material grade:
• 316L. 304 is required.
• Seal(Gasket):
• EPDM, SILICON, VITON
• Size range:
• DN40/43, DN50/53, DN60/63, DN70/73, DN80/83, DN100/103

• Minimum Order: Negotiable
• FOB: Keelung
