bag making machine

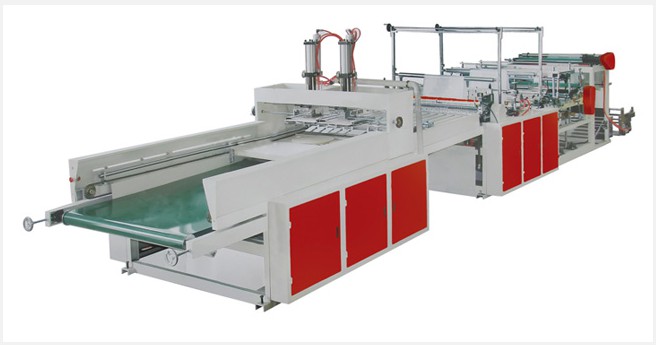

JX-700/900Ⅱ type square bottom bag making machine
Uses: The machine is mainly applied to produce various kinds of HDPE, LDPE bottom seal bags, such as food bags, sanitary napkins, packaging bags, gift bags, packaging bags, clothing and shoes.
Features:
○ CPU integrated control, LCD display keyboard operating system
○ fixed length control of the stepper motor
○ the main speed frequency conversion motor, LG inverter control
○ automatic counting, preset auto stop, warning function
Technical parameters:
Maximum bag width 650mm 850mm
Maximum bag length 30-1000mm
Maximum mechanical speed 30-70 Once/min
Unwinding diameter of the largest ¤700mm
Paper core diameter for ¤76mm
Cutting precision ±0.5mm
Weight ~900kg~1000kg
Power consumption ~3kw~4kw
Dimensions 2500×1200×1600mm
2500×1400×1600mm
Pls contact: emilyplastics@yeah.net
Uses: The machine is mainly applied to produce various kinds of HDPE, LDPE bottom seal bags, such as food bags, sanitary napkins, packaging bags, gift bags, packaging bags, clothing and shoes.
Features:
○ CPU integrated control, LCD display keyboard operating system
○ fixed length control of the stepper motor
○ the main speed frequency conversion motor, LG inverter control
○ automatic counting, preset auto stop, warning function
Technical parameters:
Maximum bag width 650mm 850mm
Maximum bag length 30-1000mm
Maximum mechanical speed 30-70 Once/min
Unwinding diameter of the largest ¤700mm
Paper core diameter for ¤76mm
Cutting precision ±0.5mm
Weight ~900kg~1000kg
Power consumption ~3kw~4kw
Dimensions 2500×1200×1600mm
2500×1400×1600mm
Pls contact: emilyplastics@yeah.net
