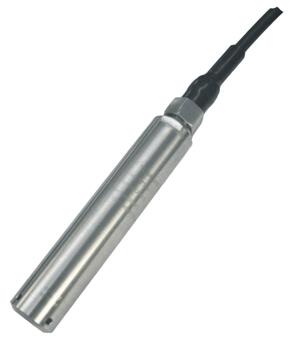

CS-PT460 level sensor is a high reliable.long term stability,high accuracy and digital compensate in the whole temperature
range level sensor,It’s special design for measurement the various seawater.
CS-PT460 with the titanium alloy housing.It can be long-time used in the -20 ℃ ~70 ℃ sea water safely.It adopts the
state-of-the-art digital compensation technology ensure the high accuracy.The zero and full scale could be calibrate by the Computer
easily.
Technical Parameters
Measurement:0.7 bar-2bar;0.7bar-3.5bar;0.7 bar-5bar;
Overload Pressure: 3 X FS Burst Pressure:4 X FS
Operation Temp.::–20℃~70℃ Compensated Temp.:–20℃~70℃
Accuracy:±0.5%F.S Stability:0.25%F.S/year
Output:4~20mA Power supply:12-30Vdc
Load resistance:(U-10)/0.02(Ω) Insulation:>100M Ω@50V
Media Compatibility:Seawater Environmental protection:IP68
Pressure Form: Absolute Agency Approval:ATEX
Electromagnetic Compatibility:EN50081-1/-2;EN50082-2
range level sensor,It’s special design for measurement the various seawater.
CS-PT460 with the titanium alloy housing.It can be long-time used in the -20 ℃ ~70 ℃ sea water safely.It adopts the
state-of-the-art digital compensation technology ensure the high accuracy.The zero and full scale could be calibrate by the Computer
easily.
Technical Parameters
Measurement:0.7 bar-2bar;0.7bar-3.5bar;0.7 bar-5bar;
Overload Pressure: 3 X FS Burst Pressure:4 X FS
Operation Temp.::–20℃~70℃ Compensated Temp.:–20℃~70℃
Accuracy:±0.5%F.S Stability:0.25%F.S/year
Output:4~20mA Power supply:12-30Vdc
Load resistance:(U-10)/0.02(Ω) Insulation:>100M Ω@50V
Media Compatibility:Seawater Environmental protection:IP68
Pressure Form: Absolute Agency Approval:ATEX
Electromagnetic Compatibility:EN50081-1/-2;EN50082-2
